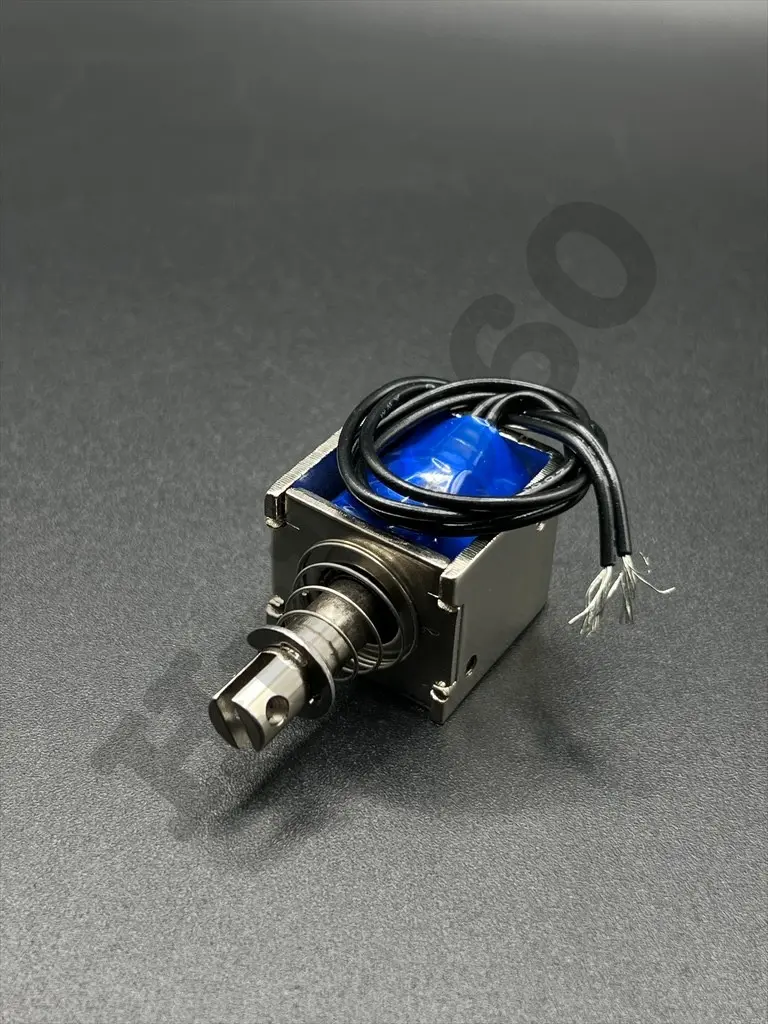

JF-0826B 12V 2A 10mm Linear Solenoid
The JF-0826B is a linear solenoid actuator designed to provide linear motion when powered by a 12V DC supply. It is capable of exerting significant force, making it suitable for various applications requiring precise and powerful linear actuation.
Key Features:
- Operating voltage: 12V DC
- Current: 2A
- Stroke length: 10mm
- Compact and robust design
- High force output
- Easy to install and integrate into existing systems
- Voltage: 12V DC
- Current: 2A
- Stroke Length: 10mm
- Force: Varies with stroke and voltage, typically high force output
- Duty Cycle: Intermittent
- Coil Resistance: Approximately 6 ohms
- Body Dimensions: 26mm x 15mm x 8mm (L x W x H)
- Plunger Diameter: 10mm
- Mounting: Through-holes for secure installation
- Door locks
- Vending machines
- Industrial automation
- Robotics
- Medical devices
- Automotive systems
