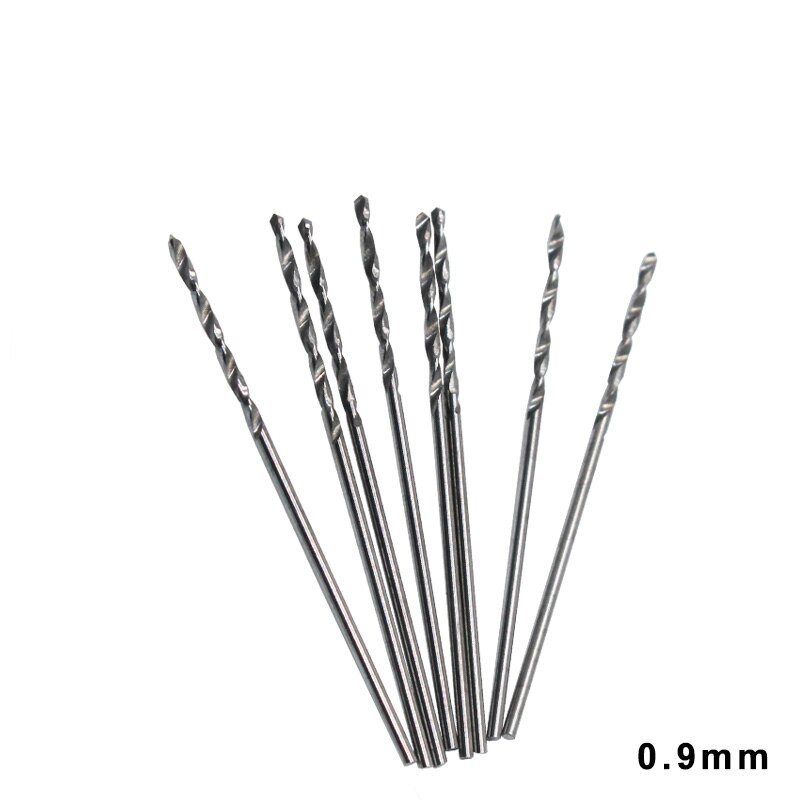

0.9mm drill bit
This content will be shared across all product pages.
A 0.9mm drill bit is a small-diameter tool used for precision drilling in various materials. It is commonly employed in electronics, model making, jewelry crafting, and other applications where fine detail and accuracy are crucial.
Key Features:
- Diameter: 0.9mm (approximately 0.035 inches)
- Material: Typically made from high-speed steel (HSS) or carbide for durability and sharpness.
- Shank: Straight shank that fits into standard drill chucks securely.
- Applications: Ideal for drilling precise holes in materials such as PCBs (Printed Circuit Boards), metals, plastics, and wood.
- Usage: Requires stable drilling setup and careful handling due to its small size.
- Cutting Edge: Single or multiple flutes for efficient material removal during drilling.
- Compatibility: Suitable for use with handheld drills, drill presses, and CNC machines capable of handling small-diameter bits.
- Safety: Use eye protection and ensure a secure workpiece setup to prevent injury and material damage.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
