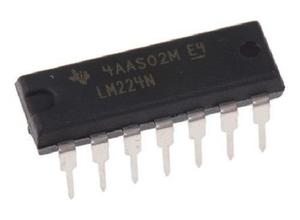

LM224 OP AMP
The LM224 is a quad operational amplifier (op-amp) that offers high gain and internal frequency compensation. Manufactured by Texas Instruments, this versatile op-amp operates with a single or dual power supply, making it suitable for a wide range of applications including signal conditioning, filtering, and voltage amplification. The LM224 is designed to operate at low power while providing a wide bandwidth, and it is available in several package types, making it ideal for both commercial and industrial applications.
Key Features:
- Quad Operational Amplifier: Four independent op-amps in a single package
- Wide Supply Voltage Range: 3V to 32V (single supply) or ±1.5V to ±16V (dual supply)
- Low Power Consumption: Suitable for battery-operated devices
- High Gain: Ensures accurate amplification of input signals
- Internal Frequency Compensation: Simplifies circuit design
- Wide Bandwidth: Suitable for a variety of signal processing applications
- Package Types: Available in PDIP, SOIC, and TSSOP
- Supply Voltage: 3V to 32V (single supply), ±1.5V to ±16V (dual supply)
- Input Offset Voltage: 3mV (typical)
- Input Bias Current: 20nA (typical)
- Output Current: 40mA (max)
- Bandwidth: 1 MHz (typical)
- Slew Rate: 0.4 V/µs (typical)
- Operating Temperature Range: 0°C to +70°C
- Package Types: 14-pin PDIP, 14-pin SOIC, 14-pin TSSOP
- Signal Conditioning: Used in signal amplification and conditioning circuits.
- Filtering: Suitable for implementing active filters.
- Voltage Amplification: Ideal for amplifying small voltage signals in various applications.
- Analog-to-Digital Converters (ADCs): Provides accurate amplification for ADC input signals.
- Sensor Interfaces: Used to interface with various sensors by amplifying sensor outputs.
- Industrial Control Systems: Suitable for control and automation applications requiring reliable amplification.
- Consumer Electronics: Integrated into audio equipment, measurement devices, and other consumer electronics.
