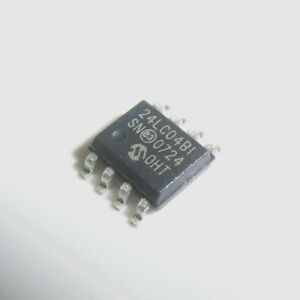

EEPROM 24LC04BT-I/SN SOP8
The 24LC04BT-I/SN is a 4 Kbit (512 x 8) I2C-compatible Electrically Erasable Programmable Read-Only Memory (EEPROM) IC manufactured by Microchip Technology. It provides non-volatile storage for data that can be electrically erased and reprogrammed. The 24LC04BT-I/SN operates over an I2C serial bus interface, allowing for easy integration into various electronic systems requiring small, reliable data storage.
Key Features:
- Memory Capacity: 4 Kbits (512 x 8 bits)
- Organization: 512 words × 8 bits
- Technology: Electrically Erasable Programmable Read-Only Memory (EEPROM)
- Interface: I2C (Inter-Integrated Circuit) compatible, 2-wire serial interface
- Operating Voltage: 1.7V to 5.5V
- Write Cycle Time: 5 ms (typical)
- Data Retention: 200 years (typical)
- Package Type: SOP-8 (Small Outline Package)
- Supply Voltage: 1.7V to 5.5V
- Write Protection: Software write-protect feature
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -65°C to +150°C
- Package Type: SOP-8 (Small Outline Package)
- Embedded Systems: Stores configuration data, calibration data, and firmware in microcontroller-based systems.
- Consumer Electronics: Used in TVs, set-top boxes, and other consumer devices for configuration storage.
- Industrial Applications: Data logging, system configuration, and calibration storage in industrial equipment.
- Automotive Electronics: Stores data for car infotainment systems, sensors, and controllers.
- Medical Devices: Stores patient data and calibration information in medical equipment.
