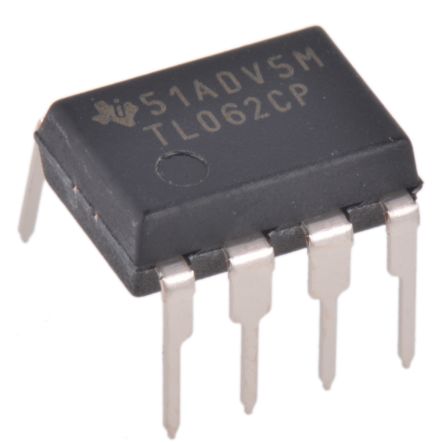

TL062CP Op Amp
Description:
The TL062CP is a low-power dual operational amplifier (op-amp) designed for applications requiring low noise, low distortion, and wide bandwidth. It operates on a single or dual power supply and is suitable for battery-operated devices and other low-power applications.
Key Features:
- Dual operational amplifier in a single package
- Low power consumption: typically 200 µA per amplifier
- Wide bandwidth: 1 MHz (typical)
- Low input bias current: 30 pA (typical)
- Low offset voltage: 3 mV (max)
- Common-Mode Rejection Ratio (CMRR): 80 dB (typical)
- High slew rate: 3.5 V/µs (typical)
- Single or dual supply operation: ±3V to ±15V or 3V to 30V
- Package Type: DIP-8
- Supply Voltage Range: ±3V to ±15V (dual supply), 3V to 30V (single supply)
- Input Voltage Range: ±15V (differential)
- Input Offset Current: 3 nA (typical)
- Power Consumption: 200 µA per amplifier
- Operating Temperature Range: 0°C to +70°C
- Dimensions: 9.81 mm x 6.35 mm x 4.57 mm
- Weight: 0.32 g
- Audio Amplification: Used in audio preamplifiers, mixers, and equalizers.
- Signal Conditioning: Suitable for sensor signal conditioning and instrumentation amplifiers.
- Filters and Instrumentation: Used in active filters and precision instrumentation.
- Data Acquisition Systems: Interfaces with ADCs for signal processing and measurement.
- Control Systems: Provides amplification and signal conditioning in control systems.
