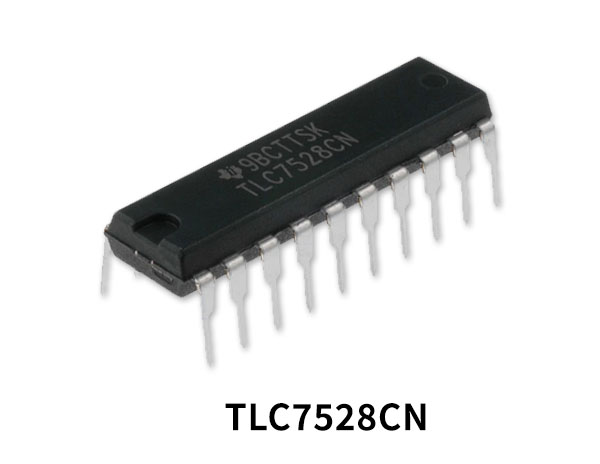

TLC7528CN dual output channel 8bit DAC
Description:
The TLC7528CN is a dual-channel, 8-bit voltage output digital-to-analog converter (DAC) designed for applications requiring precision analog output signals. It provides two independent DAC channels in a single package, making it suitable for systems requiring multiple analog outputs with high resolution and accuracy.
Key Features:
- Dual-channel 8-bit DAC
- Low power consumption: typically 0.7 mW at VDD = 5V
- Rail-to-rail output voltage swing
- Double-buffered data input
- Fast settling time: 4.5 µs (typical)
- Low glitch energy: 4 nV-s
- Power-on reset clears DAC output to zero scale
- Package Type: DIP-16
- Resolution: 8 bits
- Supply Voltage Range: 4.5V to 6V
- Operating Temperature Range: -40°C to +85°C
- Output Voltage Range: 0V to Vref (typically VDD)
- Integral Non-Linearity (INL): ±0.5 LSB (max)
- Differential Non-Linearity (DNL): ±0.5 LSB (max)
- Settling Time: 4.5 µs (typical)
- Dimensions: 19.56 mm x 6.6 mm x 3.3 mm
- Weight: 1.12 g
- Analog Signal Generation: Used in waveform generation and signal synthesis.
- Precision Instrumentation: Provides precise analog output for measurement and calibration instruments.
- Data Acquisition Systems: Interfaces with microcontrollers and ADCs to generate analog signals for testing and control.
- Control Systems: Used in closed-loop control systems for precise actuation and positioning.
- Communication Systems: Provides analog modulation signals in communication equipment.
