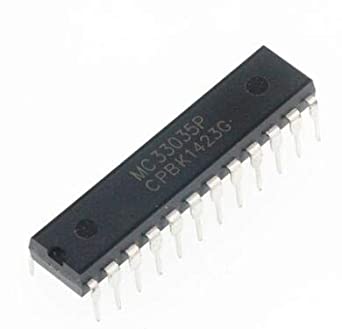

MC33035P motor driver
Description:
The MC33035P is a versatile motor controller IC designed for use in motor control applications. It integrates various features necessary for driving brushless DC motors (BLDC) and permanent magnet synchronous motors (PMSM), making it suitable for applications requiring precise motor control and efficiency.
Key Features:
- Designed for 3-phase motor control: BLDC and PMSM
- Integrated commutation logic and drive circuitry
- Internal pulse-width modulation (PWM) generator
- Adjustable dead-time for improved efficiency and reduced heat dissipation
- Overcurrent protection and fault detection
- Speed control through external control signals
- Built-in under-voltage lockout (UVLO) protection
- Package Type: PDIP-16
- Supply Voltage Range: 8V to 20V
- Operating Temperature Range: 0°C to +70°C
- PWM Frequency: Adjustable up to 25 kHz
- Maximum Output Current: Typically 1.5A per phase
- Dimensions: 19.81 mm x 6.35 mm x 3.56 mm
- Weight: 1.02 g
- Brushless DC Motors (BLDC): Used in fan motors, pump motors, and small electric vehicles.
- Permanent Magnet Synchronous Motors (PMSM): Used in industrial automation, robotics, and HVAC systems.
- Motor Control Systems: Provides precise speed and torque control in various motor-driven applications.
- Battery-Powered Devices: Efficient motor control for portable and battery-operated devices.
- Industrial and Automotive Applications: Drives motors in machines, tools, and automotive systems.
