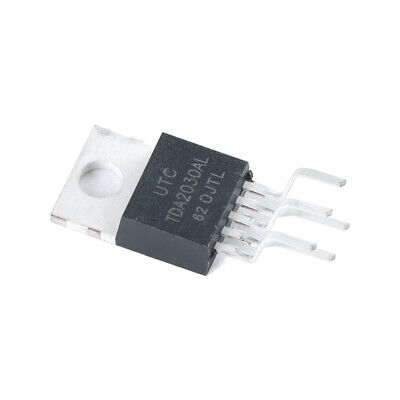

TDA2030L Audio power amplifier
Description: The TDA2030L is a monolithic power amplifier IC intended for use as a low-frequency class AB amplifier. It is designed for audio amplifier applications and provides high output current capability with low harmonic and crossover distortion. The TDA2030L operates over a wide voltage range and is suitable for a variety of audio amplification tasks in consumer electronics and audio equipment.
Key Features:
- High output power capability: up to 14W
- Low harmonic and crossover distortion
- Short-circuit protection
- Thermal shutdown protection
- Wide operating voltage range: ±3V to ±18V
- Single-supply operation possible with appropriate external components
- High slew rate: 8V/µs
- Low noise
- On-chip thermal shutdown
- Package Type: Multiwatt-11
- Output Power: Up to 14W (4Ω load, THD = 0.5%)
- Total Harmonic Distortion (THD): 0.1% (typical)
- Frequency Response: 20 Hz to 20 kHz
- Supply Voltage Range: ±3V to ±18V
- Operating Temperature Range: 0°C to +70°C
- Dimensions: 15.8 mm x 11.8 mm x 4.57 mm
- Weight: 1.4 g
- Audio Amplifiers
- Hi-Fi Systems
- Portable Speakers
- Television and Radio Sets
- Musical Instruments
- Home Theater Systems
