Description:

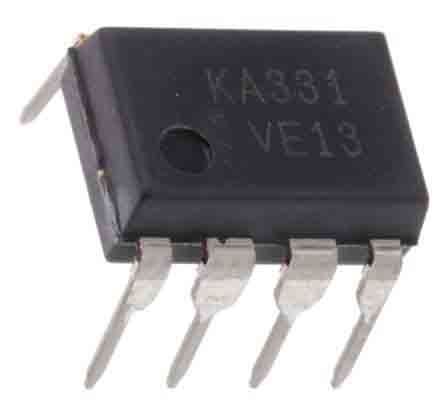

The KA331 is a voltage-to-frequency converter designed for use in a variety of applications where an analog voltage needs to be converted to a frequency output. It provides a linear relationship between the input voltage and the output frequency, making it ideal for data conversion, signal processing, and instrumentation applications. The KA331 features low power consumption and high accuracy.
Key Features:
- Linear voltage-to-frequency conversion
- Wide input voltage range
- High accuracy and stability
- Low power consumption
- Adjustable full-scale frequency
- Wide supply voltage range: 4.5V to 18V
- TTL and CMOS compatible output
- Internal temperature compensation
- Minimal external components required
- Package Type: PDIP-8, SOIC-8
- Input Voltage Range: 0V to 10V (typical)
- Output Frequency Range: 1 Hz to 100 kHz (typical)
- Supply Voltage Range: 4.5V to 18V
- Linearity Error: ±0.03% (typical)
- Operating Temperature Range: 0°C to +70°C
- Power Consumption: 2.5 mW (typical at 5V)
- Dimensions: 9.81 mm x 6.35 mm x 3.94 mm
- Weight: 0.5 g
- Data Conversion: Converts analog voltage signals to digital frequency signals for data processing.
- Signal Processing: Used in signal processing applications where frequency output is required.
- Instrumentation: Ideal for use in measurement and instrumentation systems.
- Frequency Synthesis: Generates precise frequency signals for various applications.
- Communication Systems: Used in communication devices for signal modulation and demodulation.
- Industrial Control: Suitable for control systems requiring voltage-to-frequency conversion.
