Description

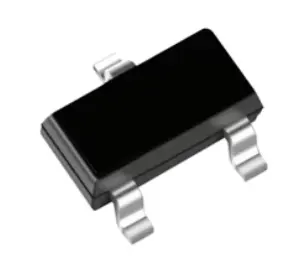

The IRLM2502 is a high-performance, compact N-channel MOSFET optimized for efficient power management and switching applications. Its low on-state resistance and rapid switching capabilities make it ideal for load switching, DC-DC converters, and other power-sensitive circuits. Housed in a space-saving SOT23 package, it offers easy integration into compact designs while delivering excellent thermal and electrical performance.
Key Features
- N-channel MOSFET for versatile applications
- Low on-state resistance for high efficiency
- Fast switching speed for improved circuit performance
- Compact SOT23 package for space-constrained designs
- Logic-level gate drive compatible
Specification
- Drain-Source Voltage (Vds): 20V
- Continuous Drain Current (Id): 3.8A
- On-State Resistance (Rds(on)): 0.042Ω max at Vgs = 4.5V
- Gate-Source Voltage (Vgs): ±8V
- Total Gate Charge (Qg): 10nC
- Operating Temperature Range: -55°C to +150°C
- Package: SOT23
Application
- Power management circuits
- Load switching
- DC-DC converters
- Battery-powered devices
Datasheet: For detailed technical information, please refer to the IRLM2502 Datasheet .
