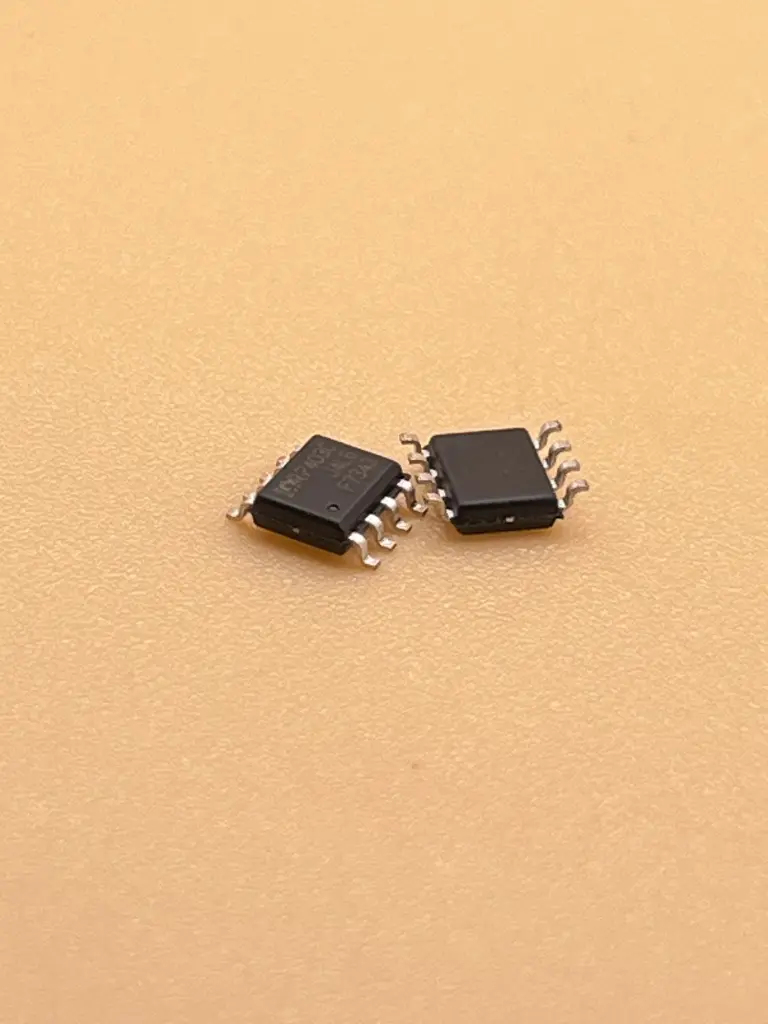

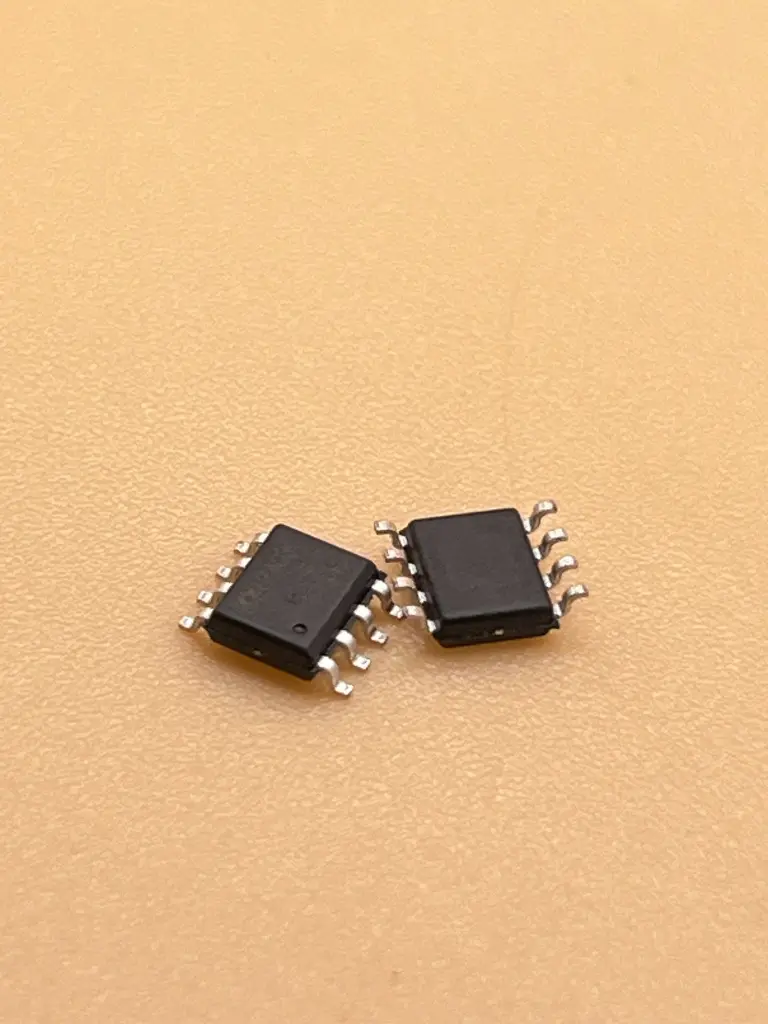

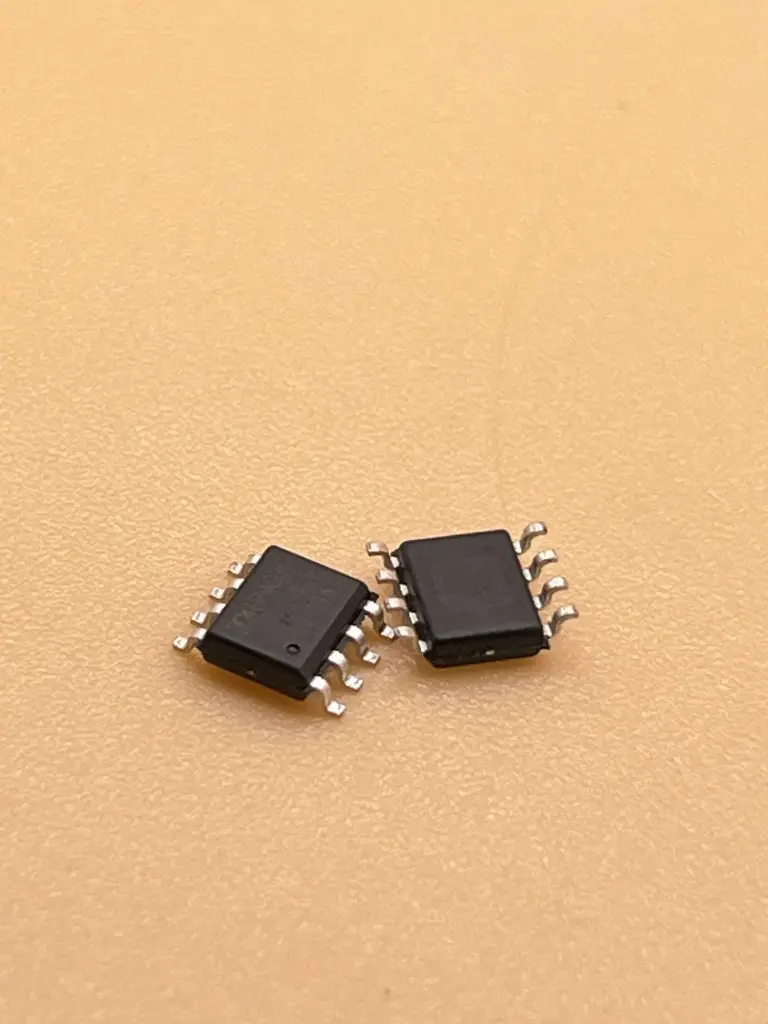

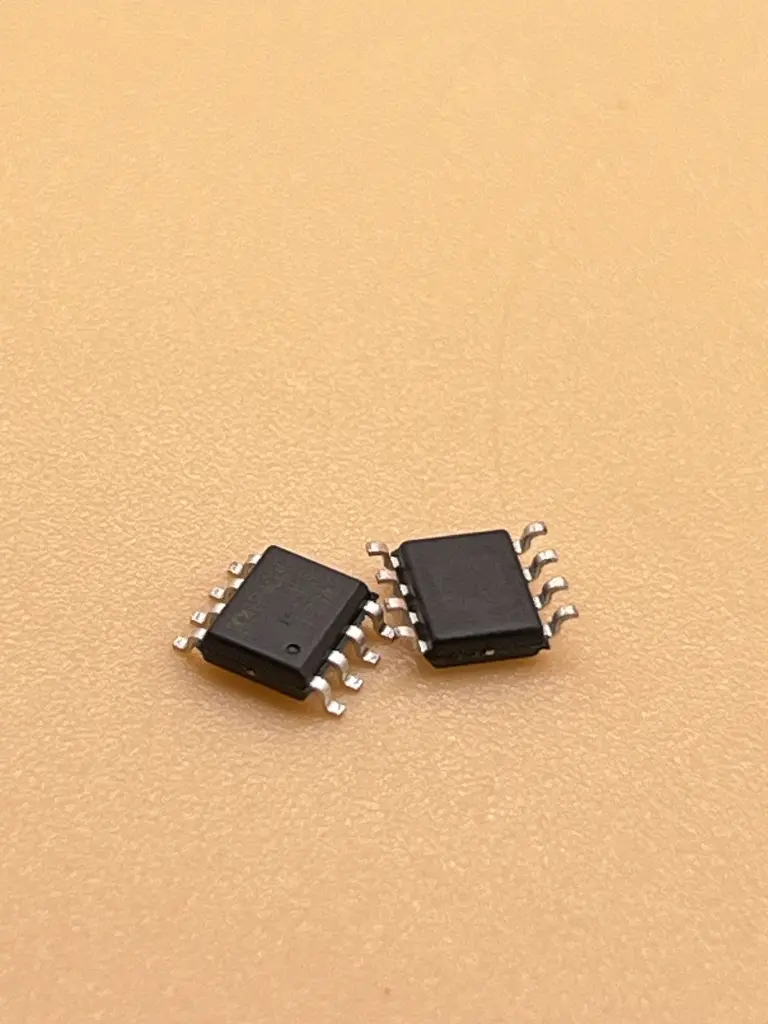

IRF7343 SOP8
The IRF7343 is a dual N-channel MOSFET designed for high-speed switching applications. It features low on-resistance and fast switching capabilities, making it suitable for a variety of power management applications, including DC-DC converters, load switching, and battery management. The dual MOSFET configuration provides a compact and efficient solution for power switching needs. The IRF7343 comes in an SOP8 package, ensuring easy integration into various designs.
Key Features:
- Dual N-channel MOSFET
- Low on-resistance: 0.055Ω at Vgs = 10V
- High current capability: 5.6A
- Low gate charge: 15nC
- Fast switching speed
- Logic level gate drive
- Standard SOP8 package
- Drain-to-Source Voltage (Vds): 30V
- Gate-to-Source Voltage (Vgs): ±20V
- Continuous Drain Current (Id): 5.6A
- Pulsed Drain Current (Id, pulse): 40A
- On-Resistance (Rds(on)): 0.055Ω at Vgs = 10V
- Total Gate Charge (Qg): 15nC
- Operating Temperature Range: -55°C to +150°C
- Package: SOP8
- DC-DC converters
- Load switching
- Battery management
- Power management in portable devices
