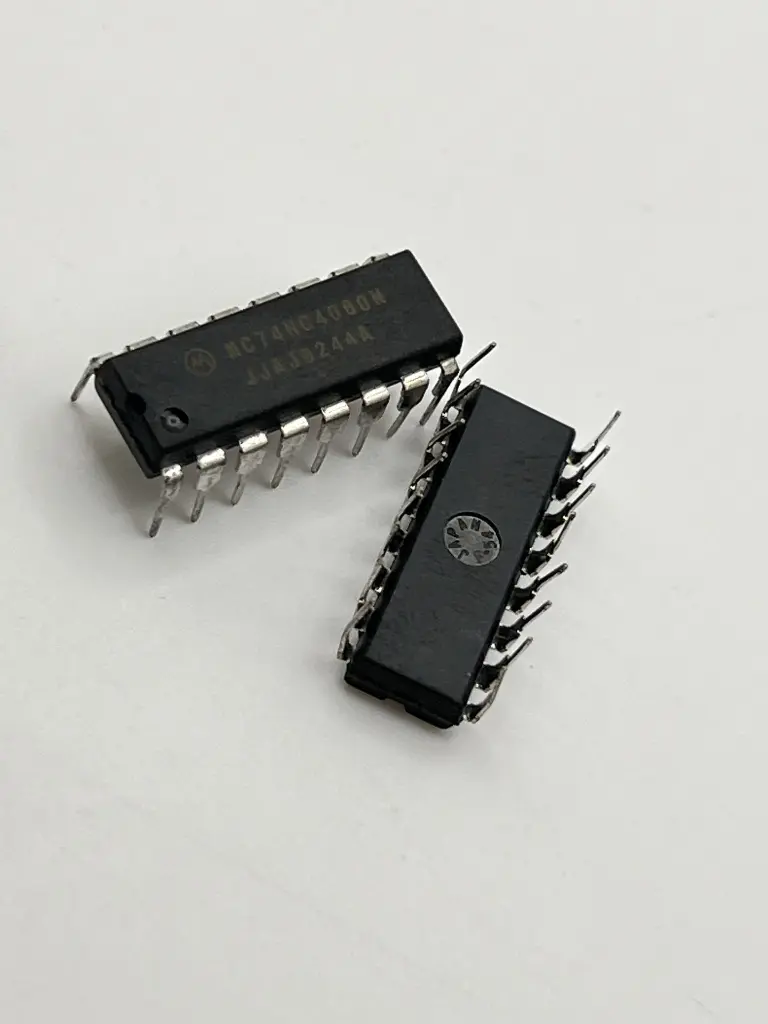

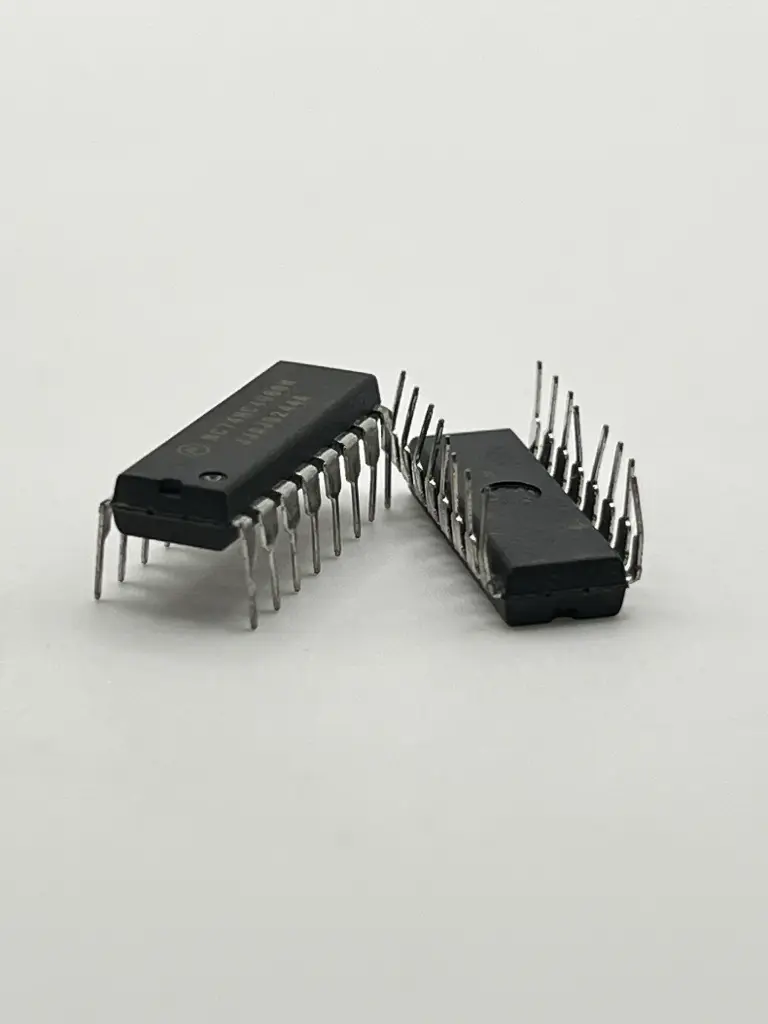

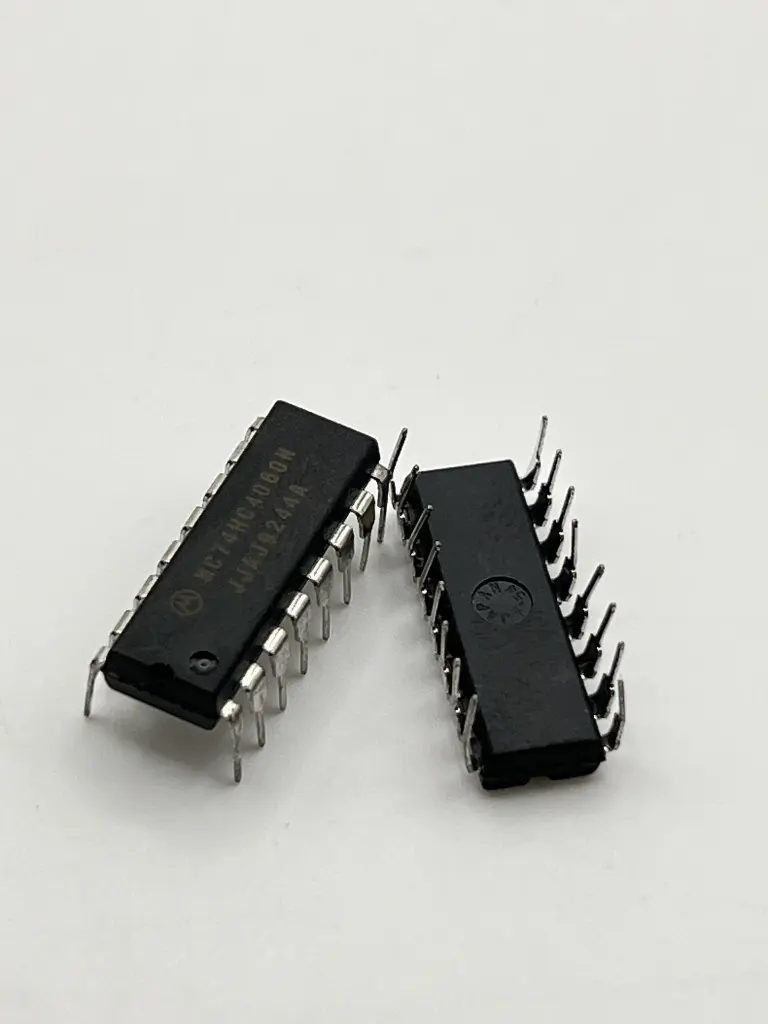

MC74HC4060N (74HC4060) logic chip
The MC74HC4060N (74HC4060) is a high-speed CMOS 14-stage binary ripple counter with an integrated oscillator. It features a wide operating voltage range, low power consumption, and high noise immunity. The oscillator configuration allows for a wide range of applications, including frequency division and time delay generation. The 74HC4060 can be used in a variety of digital systems where accurate time delays and frequency division are required.
Key Features:
- 14-stage binary ripple counter
- Integrated oscillator
- High-speed CMOS technology
- Low power consumption
- High noise immunity
- Wide supply voltage range: 2V to 6V
- TTL-compatible inputs
- Reset function to clear the counter
- Wide range of oscillator frequencies
- Supply Voltage (VCC): 2V to 6V
- Input Voltage Range: 0V to VCC
- High-Level Output Voltage (VOH): VCC - 0.1V (min at VCC = 4.5V)
- Low-Level Output Voltage (VOL): 0.1V (max at VCC = 4.5V)
- High-Level Input Voltage (VIH): 70% of VCC (min)
- Low-Level Input Voltage (VIL): 30% of VCC (max)
- Propagation Delay Time: 21 ns (typical at VCC = 5V)
- Operating Temperature Range: -55°C to +125°C
- Package: 16-pin DIP, SOIC, TSSOP
- Frequency division
- Time delay generation
- Digital clocks and timers
- Sequential timing applications
- Frequency synthesizers
- Control systems
