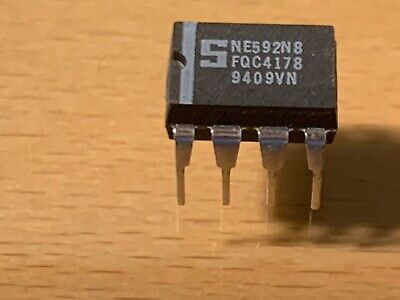

NE592N8 video Amplifier
Description:
The NE592N8 is a monolithic, high-frequency, video amplifier designed specifically for applications requiring high bandwidth and low distortion. It is capable of amplifying video signals with minimal degradation, making it suitable for use in video processing equipment, professional video cameras, monitors, and other video signal processing applications. The NE592N8 integrates a wideband amplifier with differential inputs to ensure accurate signal reproduction and enhanced video quality.
Key Features:
- Wideband video amplifier with differential inputs
- Low distortion and high bandwidth for accurate video signal reproduction
- High slew rate for fast signal response
- Internal compensation for stable performance over a wide range of temperatures
- Suitable for AC-coupled and DC-coupled video applications
- Low supply voltage and power consumption
- Stable operation with reduced sensitivity to load variations
- Package Type: DIP-8
- Bandwidth: Up to 300 MHz
- Supply Voltage: ±2V to ±18V (dual supply) or 4V to 36V (single supply)
- Input Voltage Range: ±2V (dual supply) or 0V to 36V (single supply)
- Input Offset Voltage: ±2 mV (max)
- Input Bias Current: 1.5 nA (typical)
- Operating Temperature Range: -40°C to +85°C
- Dimensions: Standard DIP-8 package
- Video Cameras and Recorders
- Video Distribution Systems
- Video Signal Processing Equipment
- Professional Broadcast Equipment
- CCTV (Closed Circuit Television) Systems
- Multimedia Displays
