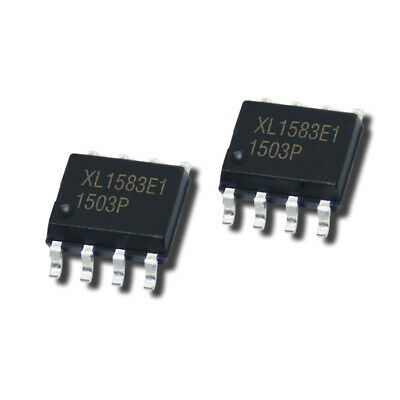

XL1583E1 SOP8 DC-DC chip
The XL1583 is a high-efficiency step-down (buck) converter IC designed to efficiently reduce higher input voltages to lower output voltages, suitable for a wide range of electronic applications.
Key Features:
- Input Voltage Range: Typically up to 36V
- Output Voltage: Adjustable (based on external components)
- Output Current: Up to several amps (depending on configuration and external components)
- Switching Frequency: Typically adjustable, commonly around 100 kHz to 1 MHz
- Efficiency: High efficiency operation, up to 95%
- Built-in Protections: Includes overcurrent protection, thermal shutdown, and under-voltage lockout
- Startup: Soft-start function to limit inrush current during startup
- Package Type: SOP8 (Small Outline Package 8) or similar compact packages
- Operating Temperature Range: -40°C to +125°C (depending on package and manufacturer specifications)
- Output Voltage Accuracy: Typically ±2% or better
- Regulation: Line and load regulation typically around 0.5% or better
- Power Supplies: Ideal for generating stable lower DC voltages in electronic circuits.
- Battery-Powered Devices: Efficient power conversion for battery-operated devices.
- LED Drivers: Provides regulated voltage for powering LEDs.
- Portable Equipment: Used in handheld and portable electronic devices.
- Industrial Applications: Suitable for various industrial systems requiring efficient power conversion.
