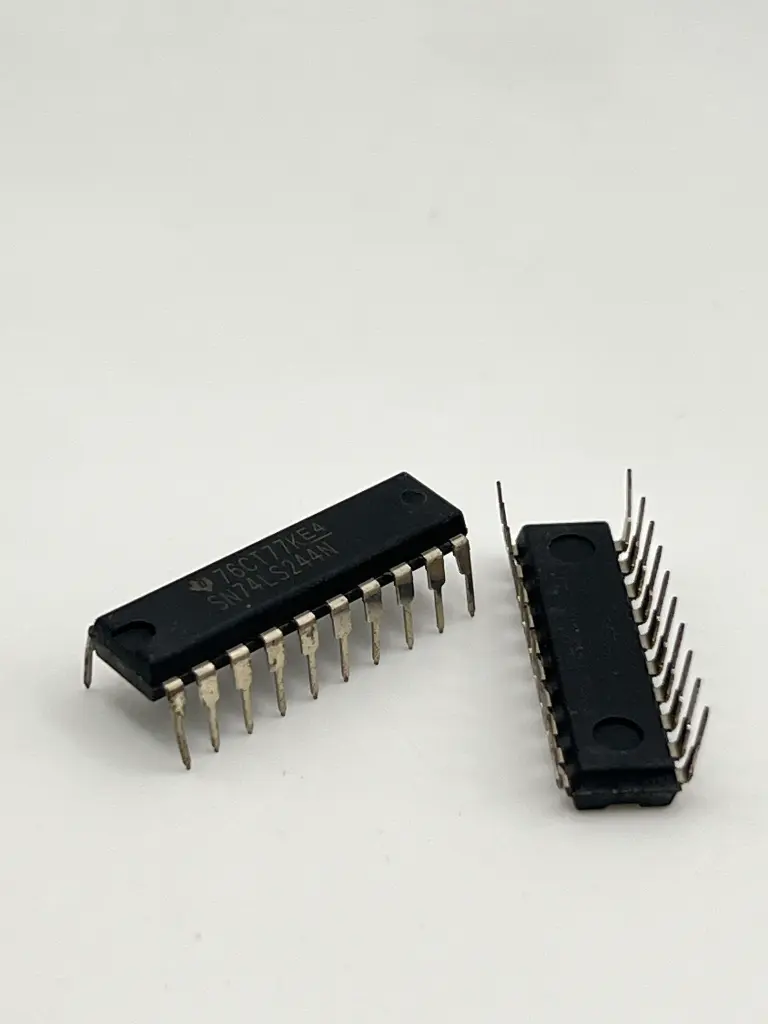

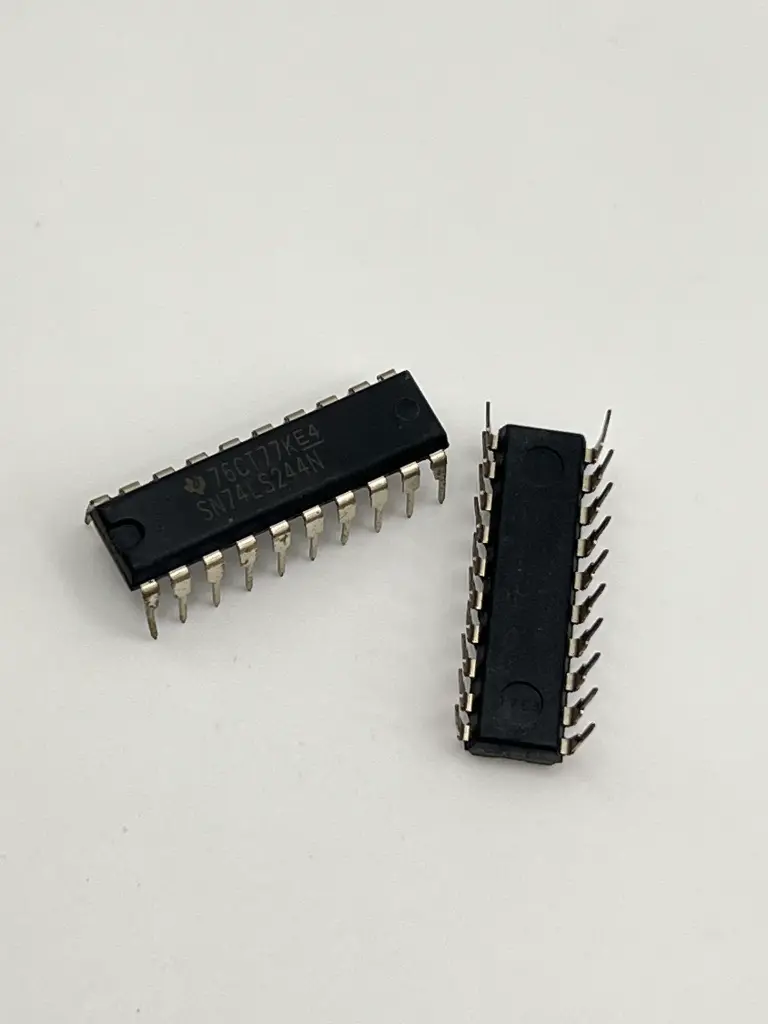

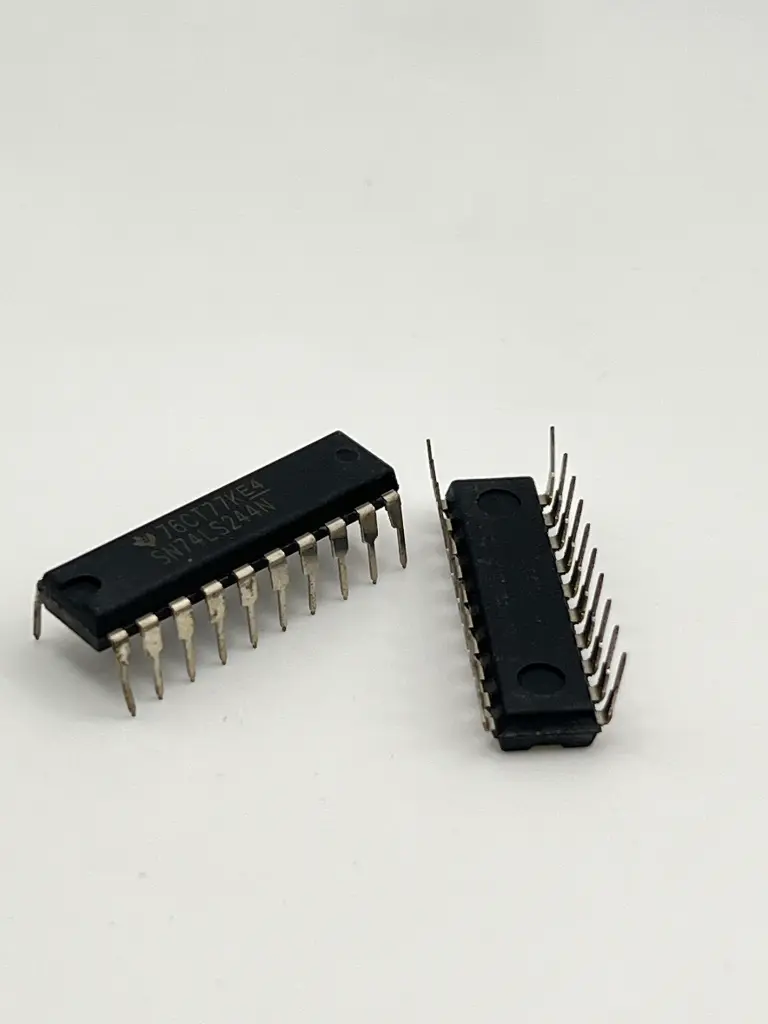

SN74LS244N (74LS244) Logic chip
Description:
The SN74LS244N is an octal buffer/line driver IC designed to be used as a bus interface for various digital systems. It features eight independent buffers with tri-state outputs, each capable of driving outputs directly or serving as input buffers for systems requiring high-speed TTL-compatible logic. This IC is particularly useful in applications where multiple devices need to share data lines while maintaining signal integrity and noise immunity.
Key Features:
- Octal buffer/line driver with tri-state outputs
- TTL-compatible inputs and outputs
- High-speed operation
- Buffering capability for interfacing between different logic families
- Tri-state outputs for bus-oriented applications
- Output current sinking capability for driving LEDs or other devices
- Package Type: 20-pin DIP (Dual In-line Package)
- Supply Voltage (VCC): 4.75V to 5.25V
- Input Voltage (VIN): 0V to VCC
- Output Voltage (VOUT): 0V to VCC
- Input High Voltage (VIH): 2V (min) at VCC = 5V
- Input Low Voltage (VIL): 0.8V (max) at VCC = 5V
- Output Current (IOH, IOL): ±8 mA (max)
- Quiescent Supply Current (ICC): 8 mA (typical) at VCC = 5V
- Operating Temperature Range: 0°C to +70°C
- Bus interface for microprocessors and peripherals
- Memory address decoding circuits
- Data transmission and buffering in digital systems
- LED driving circuits
- Signal amplification and isolation
