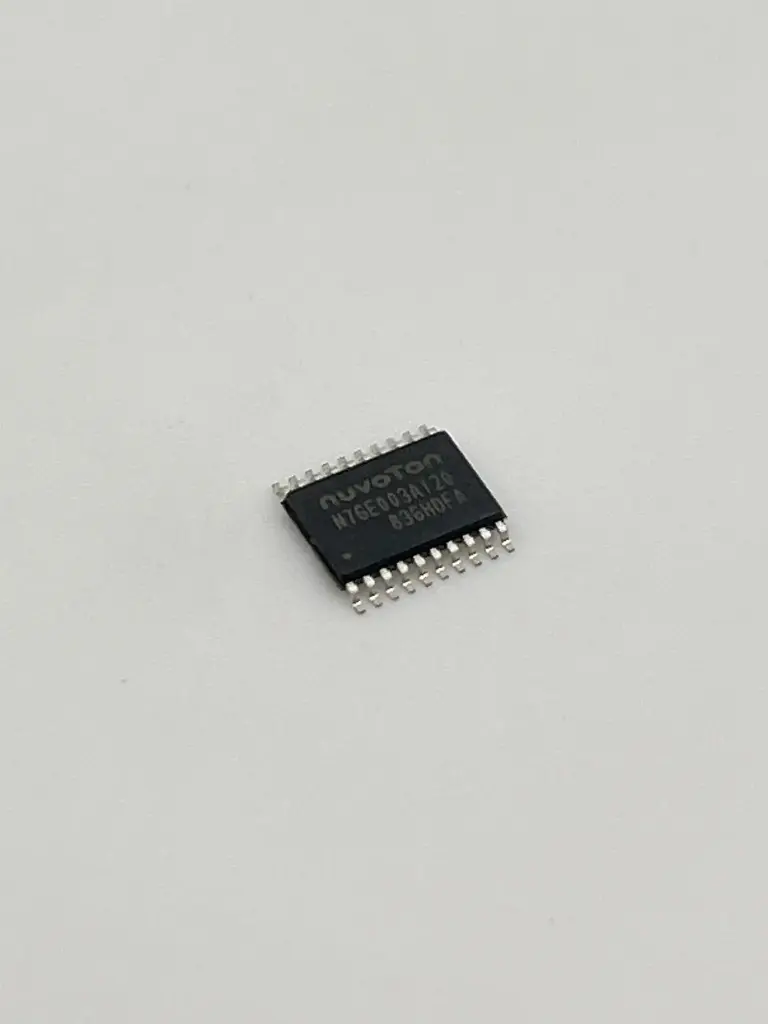

N76E003AT20 replacement for STM8S003F3P6
The N76E003AT20 is a 1T 8051-based microcontroller developed by Nuvoton Technology. It is designed for general-purpose applications, featuring enhanced performance, low power consumption, and a rich set of peripherals. The N76E003AT20 is widely used in various embedded systems and can serve as a replacement for the STM8S003F3P6 microcontroller.
Key Features:
- Microcontroller Core: 8051-based
- Clock Speed: Up to 16 MHz
- Program Memory: 18 KB Flash
- Data Memory: 1 KB RAM
- EEPROM: 256 bytes
- I/O Pins: 18 general-purpose I/O pins
- Communication Interfaces: UART, SPI, I2C
- Analog-to-Digital Converter (ADC): 8-channel, 12-bit ADC
- Timers/Counters: 3 16-bit timers
- Operating Voltage: 2.4V to 5.5V
- Package Type: TSSOP-20
- CPU: 1T 8051-based microcontroller
- Operating Frequency: Up to 16 MHz
- Program Memory Size: 18 KB Flash
- Data Memory Size: 1 KB RAM
- EEPROM: 256 bytes
- I/O Pins: 18 GPIO pins
- Communication Interfaces: UART, SPI, I2C
- Analog-to-Digital Converter (ADC): 8-channel, 12-bit resolution
- Supply Voltage: 2.4V to 5.5V
- Package Type: TSSOP-20
- General Embedded Systems: Suitable for a variety of embedded control and automation applications.
- Consumer Electronics: Used in home appliances, remote controls, and other consumer devices.
- Industrial Control: Ideal for industrial automation, monitoring, and control systems.
- IoT Devices: Can be used in Internet of Things (IoT) applications for sensor interfacing and control.
- Automotive Electronics: Suitable for non-safety automotive applications requiring general-purpose microcontroller functionality.
- Microcontroller Core: The N76E003AT20 uses an 8051 core, while the STM8S003F3P6 uses an STM8 core.
- Clock Speed: Both microcontrollers operate at similar clock speeds, with the STM8S003F3P6 operating up to 16 MHz.
- Program Memory: The N76E003AT20 has 18 KB of Flash memory, compared to 8 KB in the STM8S003F3P6.
- Data Memory: The N76E003AT20 has 1 KB of RAM, while the STM8S003F3P6 has 1 KB of RAM.
- EEPROM: The N76E003AT20 includes 256 bytes of EEPROM, compared to 128 bytes in the STM8S003F3P6.
- I/O Pins: Both microcontrollers offer a similar number of GPIO pins.
- Peripherals: Both microcontrollers provide UART, SPI, I2C interfaces, and ADC capabilities, although the specific features and performance may vary.
