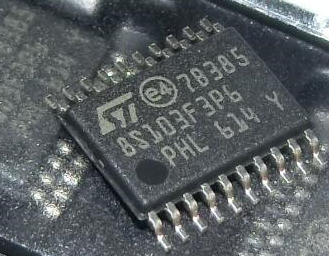

STM8S103F3P6 TSSOP20
The STM8S103F3P6 is an 8-bit microcontroller from STMicroelectronics, designed for high-performance and low-power applications. Based on the STM8 core, it integrates a rich set of peripherals, making it suitable for a wide range of embedded applications. The microcontroller is packaged in a compact TSSOP20 form factor, ideal for space-constrained designs.
Key Features:
- Microcontroller Core: STM8
- Clock Speed: Up to 16 MHz
- Program Memory: 8 KB Flash
- Data Memory: 1 KB RAM
- EEPROM: 640 bytes
- I/O Pins: 16 general-purpose I/O pins
- Communication Interfaces: UART, SPI, I2C
- Analog-to-Digital Converter (ADC): 10-bit, 5-channel ADC
- Timers/Counters: 2 16-bit timers, 1 8-bit timer
- Operating Voltage: 2.95V to 5.5V
- Package Type: TSSOP-20
- CPU: STM8 8-bit microcontroller core
- Operating Frequency: Up to 16 MHz
- Program Memory Size: 8 KB Flash
- Data Memory Size: 1 KB RAM
- EEPROM: 640 bytes
- I/O Pins: 16 GPIO pins
- Communication Interfaces: UART, SPI, I2C
- Analog-to-Digital Converter (ADC): 10-bit, 5-channel
- Timers: 2 16-bit timers, 1 8-bit timer
- Operating Voltage: 2.95V to 5.5V
- Operating Temperature Range: -40°C to +85°C
- Package Type: TSSOP-20
- General Embedded Systems: Suitable for various control and automation applications.
- Consumer Electronics: Used in home appliances, remote controls, and other consumer devices.
- Industrial Control: Ideal for industrial automation, monitoring, and control systems.
- IoT Devices: Can be used in Internet of Things (IoT) applications for sensor interfacing and control.
- Automotive Electronics: Suitable for non-safety automotive applications requiring general-purpose microcontroller functionality.
