Description

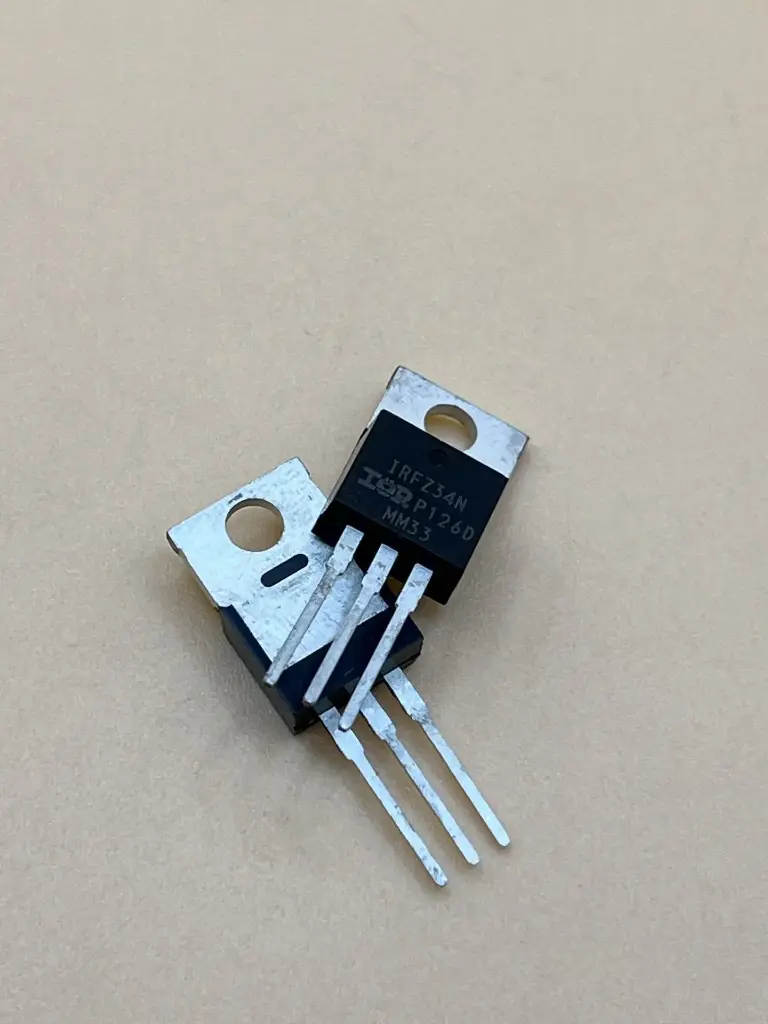

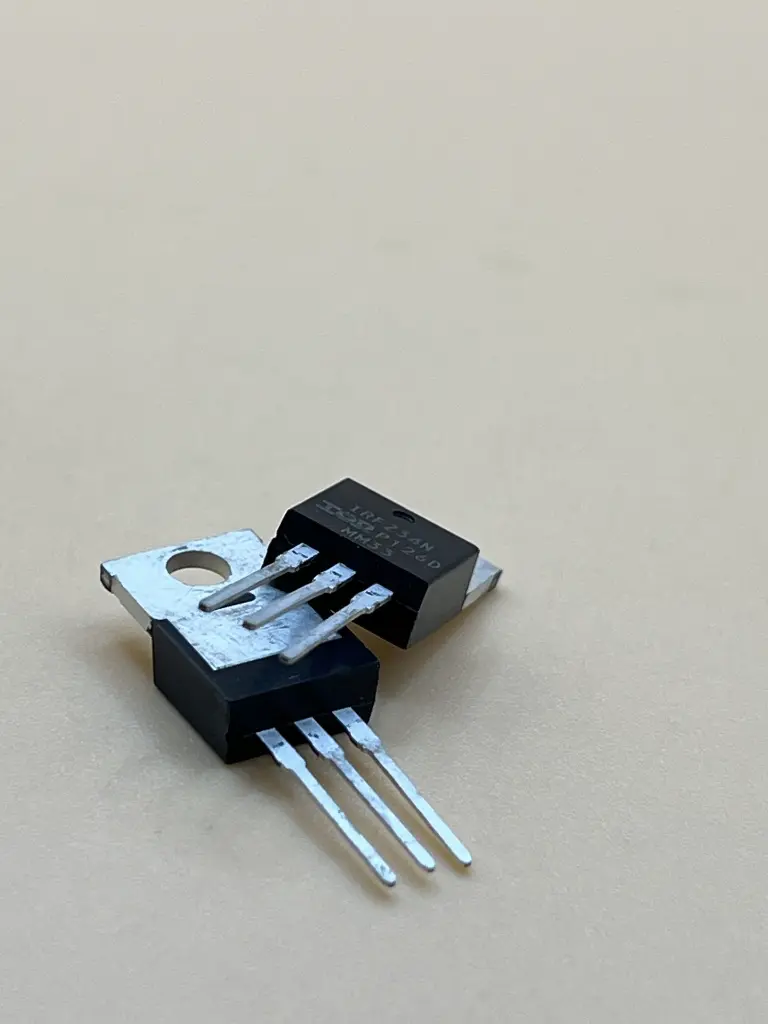

The IRFZ34N is a high-performance N-channel power MOSFET designed for high-speed and high-efficiency switching applications. With low drain-to-source on-resistance and high current handling capability, it is ideal for power supplies, motor control circuits, and power conversion systems. Housed in a TO-220 package, the IRFZ34N offers excellent thermal performance and reliability in both industrial and DIY electronic applications.
Key Features
- N-Channel Power MOSFET
- Low R<sub>DS(on)</sub>: Minimizes conduction losses for higher efficiency
- High Current Capability: Supports demanding power applications
- Fast Switching Speed: Suitable for high-frequency switching circuits
- Robust & Reliable Design: Stable operation under high load conditions
- TO-220 Package: Enables efficient heat dissipation with heatsink support
- RoHS Compliant
Specification
- Drain-Source Voltage (V<sub>DS</sub>): 55V
- Continuous Drain Current (I<sub>D</sub>): 30A
- Pulsed Drain Current (I<sub>DM</sub>): 120A
- Gate-Source Voltage (V<sub>GS</sub>): ±20V
- Maximum Power Dissipation (P<sub>D</sub>): 88W
- On-Resistance (R<sub>DS(on)</sub>): 0.022Ω @ V<sub>GS</sub> = 10V, I<sub>D</sub> = 16A
- Gate Charge (Q<sub>g</sub>): 74nC (typical)
- Input Capacitance (C<sub>iss</sub>): 2300pF (typical)
- Operating Temperature Range: -55°C to +175°C
- Package Type: TO-220
Application
- Switching Power Supplies
- Motor Control Circuits
- DC-DC Converters
- Battery-Powered Systems
- Load Switching
- Inverters and Power Management Systems.
Datasheet: For detailed technical information, refer to the IRFZ34N N-Channel Power MOSFET Datasheet.
