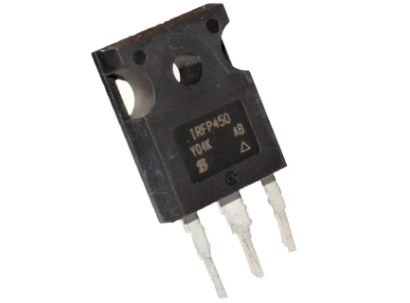

IRFP450 500V 14A N channel FET

https://www.hub360.cc/web/image/product.template/13523/image_1920?unique=80a7f96
(0 review)

₦ 4,500.00 4500.0 NGN ₦ 4,500.00

₦ 4,500.00

Not Available For Sale

(₦ 0.00 / Units)

This combination does not exist.

Contact Us
Description: The IRFP450 is a high-power N-channel MOSFET designed for applications requiring high switching speed and efficiency. It operates in enhancement mode and is suitable for power supplies, motor control, and other high-current switching circuits. The MOSFET offers low on-resistance and can handle high currents with minimal gate drive voltage. Key Features:
  • N-channel enhancement mode power MOSFET
  • Low on-resistance for high efficiency
  • Fast switching speed
  • Low gate drive voltage
  • High current handling capability
  • Rugged and reliable design
  • RoHS compliant
Technical Specifications:
  • Drain-Source Voltage (V_DS): 500V
  • Continuous Drain Current (I_D): 14A
  • Pulsed Drain Current (I_DM): 56A
  • Gate-Source Voltage (V_GS): ±20V
  • On-Resistance (R_DS(on)): 0.55Ω (max) at V_GS = 10V, I_D = 7.5A
  • Total Gate Charge (Q_g): 170nC (typical)
  • Gate Charge at 10V (Q_gs): 45nC (typical)
  • Package Type: TO-247
Applications:
  • Power supplies
  • Motor control
  • DC-DC converters
  • Switching regulators
  • Inverters
Datasheet: For detailed technical information, refer to the IRFP450 N-Channel MOSFET datasheet.
