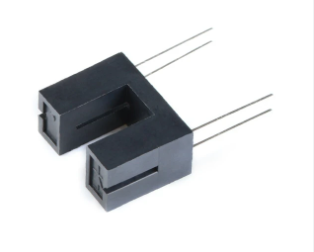

ITR-9608 slot photocoupler
Description: The ITR-9608 is a slot photocoupler designed for accurate and reliable optical sensing in a variety of applications. This device features a phototransistor output that ensures high sensitivity and quick response times. It is ideal for use in object detection, position sensing, and encoding applications where precise optical isolation is required. The slot design allows for easy alignment and integration into existing systems.
Key Features:
- Slot photocoupler with phototransistor output
- High sensitivity and quick response times
- Accurate and reliable optical sensing
- Easy alignment and integration
- RoHS compliant
- Input Diode Forward Voltage (V_F): 1.2V (typical)
- Input Diode Reverse Voltage (V_R): 5V
- Collector-Emitter Voltage (V_CEO): 30V
- Emitter-Collector Voltage (V_ECO): 5V
- Collector Current (I_C): 20mA
- Slot Width: 3.1mm
- Response Time: 20µs (rise and fall time)
- Operating Temperature Range: -25°C to +85°C
- Package Type: Through Hole
- Object detection
- Position sensing
- Encoding applications
- Automation systems
- Industrial equipment
