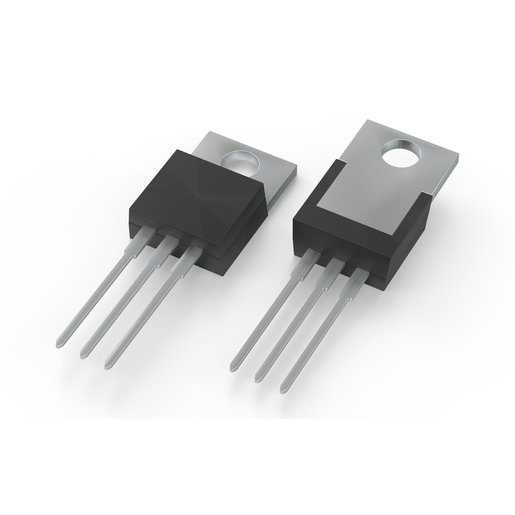

Tip32 PNP Transistor
The TIP32 is a PNP power transistor designed for general-purpose amplifier and switching applications. It is known for its robustness and reliability in medium to high-power circuits.
Key Features:
- Transistor Type: PNP bipolar junction transistor.
- Maximum Collector-Emitter Voltage (V_CE): Typically -100V.
- Maximum Collector-Base Voltage (V_CB): Typically -100V.
- Maximum Emitter-Base Voltage (V_EB): Typically -5V.
- Collector Current (I_C): Up to -3A continuous.
- Power Dissipation (P_D): Typically 40W.
- Gain (h_FE): Moderate gain suitable for a wide range of applications.
- Package Type: TO-220.
- Operating Temperature Range: -65°C to +150°C.
- Mounting Style: Through-hole.
- Pin Configuration: Base (B), Collector (C), Emitter (E).
- Power supply regulators
- Audio amplifiers
- Motor drivers
- General-purpose switching applications
