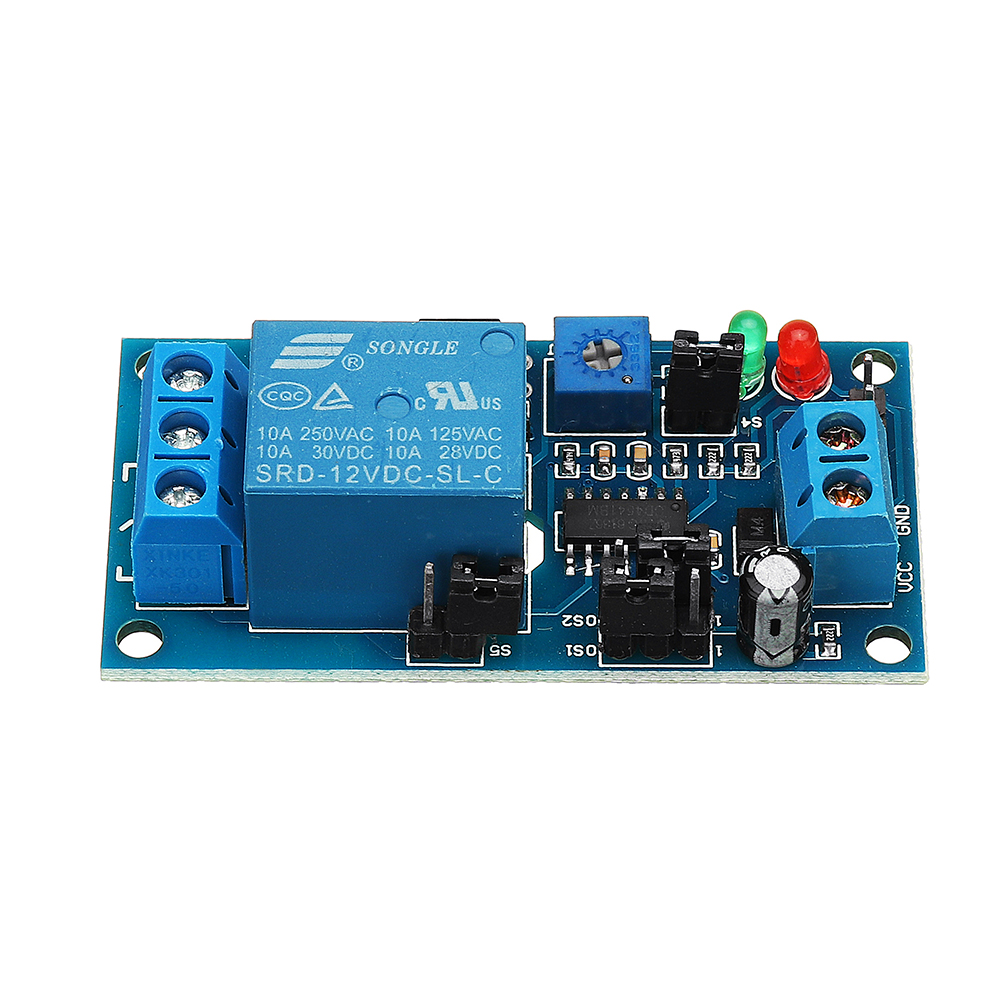

12V normally open trigger Relay delay Board
The 12V normally open trigger relay delay board is an electronic module designed to control the timing and switching of electrical circuits based on a trigger signal. It includes components such as a relay, timing circuitry, and adjustments for delay settings, providing flexibility in timing control applications.
Key Features:
Key Features:
- Operating Voltage: 12V DC, suitable for standard 12V power supplies.
- Relay Configuration: Normally Open (NO) relay contacts, which are open when the relay is not energized.
- Trigger Input: Accepts a trigger signal (e.g., voltage pulse, logic signal) to initiate the delay function.
- Delay Adjustment: Typically features adjustable delay settings, allowing precise timing control.
- LED Indicators: Provides visual indication of power status and relay activation.
- Compact Design: Small form factor for easy integration into various electronic projects.
- Operating Voltage: 12V DC
- Relay Type: Normally Open (NO)
- Delay Range: Adjustable delay time, usually configurable from milliseconds to minutes.
- Trigger Input: Accepts TTL logic levels or similar trigger signals.
- Relay Capacity: Capable of switching moderate electrical loads, depending on the relay used.
- Dimensions: Compact size for integration into electronic systems.
- Automation Systems: Used in automated systems requiring timed control of devices or processes.
- Delay Circuits: Ideal for applications needing a delay before activation or deactivation of electrical circuits.
- DIY Electronics: Suitable for hobbyists and makers creating custom timing circuits and control systems.
- Industrial Controls: Deployed in industrial settings for timed switching and control tasks.
- Remote Controls: Integrated into remote control systems to manage timing and sequence of operations.
