Description

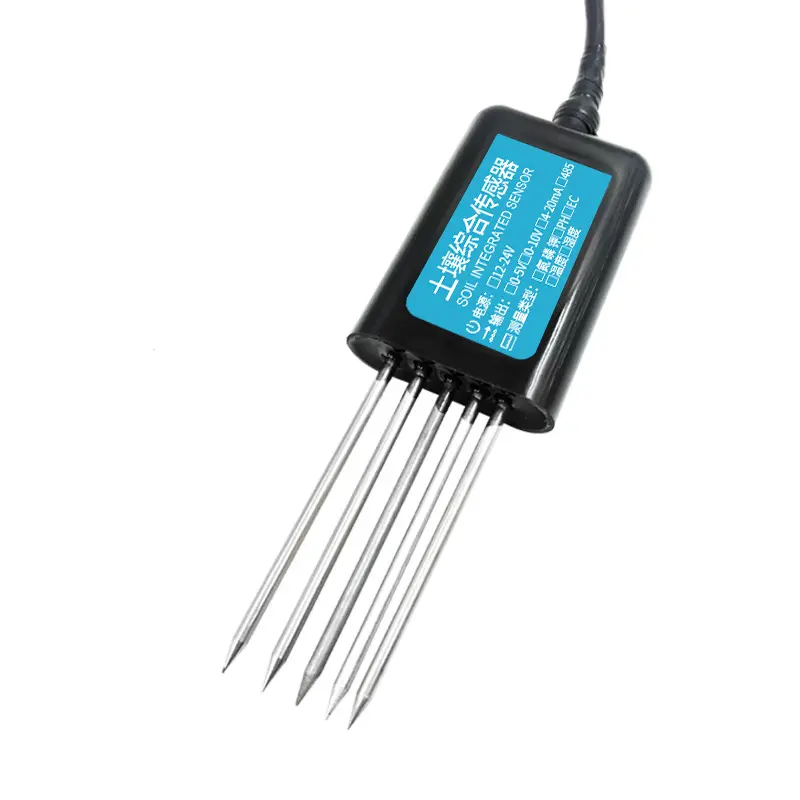

The 4-in-1 Soil Nutrient Sensor is an advanced multi-parameter soil monitoring device designed to measure soil moisture, temperature, EC (electrical conductivity), and pH using a single robust instrument. Built with five stainless-steel probes, this sensor offers high accuracy, fast response, and long-term durability in harsh outdoor environments.
Sealed with flame-retardant epoxy resin and rated IP68 waterproof, the sensor is corrosion-resistant, electrolytic-resistant, and ideal for long-term field deployment. Users can choose between multiple output options—0–5V, 0–10V, 4–20mA, or RS485 Modbus—for seamless integration into any industrial or agricultural monitoring system.
This 4-in-1 sensor eliminates the need for buying multiple soil sensors and is suitable for precision agriculture, smart irrigation, environmental monitoring, and scientific research.
Key Features
- 4 measurements in one device: soil moisture, temperature, pH, and electrical conductivity
- IP68 fully waterproof – suitable for long-term outdoor burial
- Highly flexible – choose one or multiple parameters for measurement
- Multiple output options: RS485 Modbus, 0–5V, 0–10V, 4–20mA
- Fast response time (≤1s)
- Corrosion-resistant stainless-steel probes
- Long service life (3–5 years)
- Wide input voltage (12–24V DC)
- High accuracy and stability
- Epoxy-sealed housing for dust, moisture, and chemical resistance
Specification
General
- Power Supply: DC 12–24V
-
Output Options:
- 0–5V
- 0–10V
- 4–20mA
- RS485 (Modbus)
- Maximum Power Consumption: 0.5W (24V)
- Operating Temperature: –20°C to +60°C
- Core Chip Temperature Resistance: 85°C
- Response Time: ≤1s
- Stabilization Time: ≤5 min
- Protection Rating: IP68
- Cable Length: 2m (customizable)
- Material: stainless-steel electrodes + flame-retardant epoxy resin
- Dimensions: 45 × 15 × 127 mm
Soil Moisture
- Range: 0–100% RH
-
Accuracy:
- ±2% (0–50%)
- ±3% (50–100%)
- Resolution: 0.1%
Soil Conductivity (EC)
- Range: 0–20,000 μS/cm
-
Accuracy:
- ±3% FS (0–10,000 μS/cm)
- ±5% FS (10,000–20,000 μS/cm)
- Resolution: 1 μS/cm
Soil Temperature
- Range: –40°C to +80°C
- Accuracy: ±0.5°C (at 25°C)
- Resolution: 0.1°C
Soil pH
- Range: 3–9 pH
- Resolution: 0.1 pH
Application
- Smart farming and precision agriculture
- Greenhouses and hydroponics
- Soil nutrient analysis for crop management
- Irrigation automation systems
- Environmental monitoring
- Research laboratories and agricultural universities
- Orchard, vegetable farms, and field soil testing
- IoT-based soil monitoring stations.
