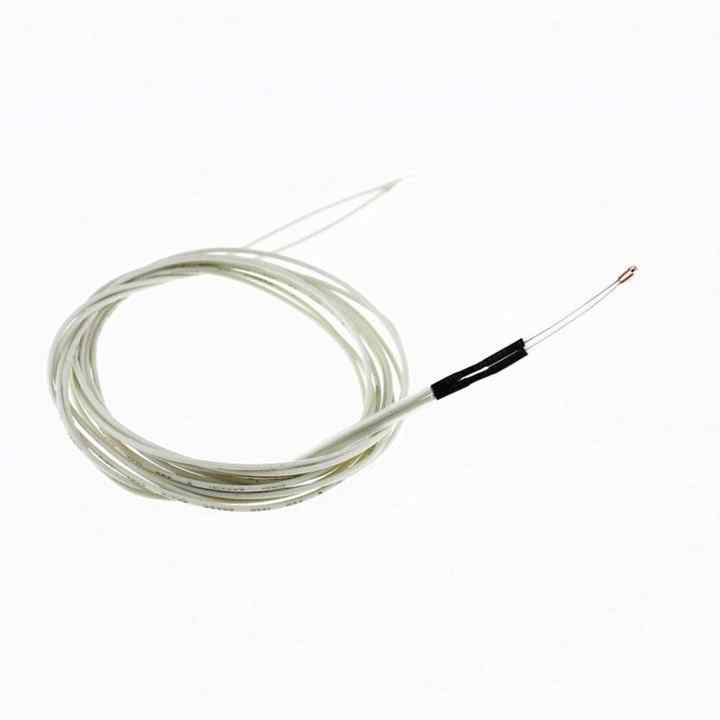

100K NTC Thermistor Temperature Sensor
Key Features:
- Precision Resistance: 100KΩ ±1% for accurate temperature measurement
- High B-Value: 3950K ±1%, ensuring stable thermal sensitivity
- Wide Operating Range: -40°C to +300°C, suitable for extreme environments
- Durable Construction:
- 1m wire length for flexible installation
- 1.05mm wire diameter for reliable connectivity
- White PTFE (Teflon) insulated wire – heat-resistant up to 200°C, 300V
- Fast Thermal Response: Heat time constant ≤7s in static air
- High Dissipation Efficiency: ≥5mW/°C for stable performance
Technical Specifications:
- Nominal Resistance (R25): 100KΩ ±1%
- B-Value (R25/50): 3950K ±1%
- Power Rating: 45mW max
- Temperature Coefficient: -2% to -5%/°C
- Common Applications: Industrial temperature sensing, 3D printers, battery packs, HVAC systems, and electronic circuits
