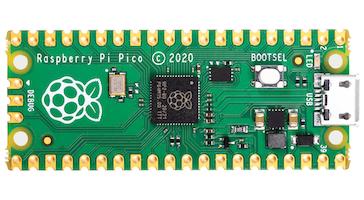

Raspberry Pi Pico RP2040
The Raspberry Pi Pico RP2040 is a microcontroller board based on the RP2040 chip, designed by Raspberry Pi. It offers high performance, low power consumption, and a range of flexible I/O options, making it ideal for embedded applications, IoT projects, and educational purposes. The Pico is the first microcontroller-class product from Raspberry Pi, combining ease of use with powerful features.
Key Features:
- Microcontroller: RP2040, designed by Raspberry Pi
- Core: Dual-core Arm Cortex-M0+ processor
- Clock Speed: Up to 133 MHz
- Memory: 264 KB of SRAM
- Flash Memory: 2 MB of onboard QSPI Flash
- Operating Voltage: 1.8V to 5.5V
- Digital I/O Pins: 26 multifunction GPIO pins
- Analog Input Pins: 3 ADC channels with 12-bit resolution
- Interfaces: 2x SPI, 2x I2C, 2x UART, 3x 12-bit ADC, 16x PWM channels
- USB: USB 1.1 with device and host support
- Power: Can be powered via micro USB or external supply (1.8V to 5.5V)
- Temperature Range: -20°C to +85°C
- Dimensions: 51.3 mm x 21.0 mm x 3.9 mm
- Weight: 3 g
- GPIO Voltage Levels: 3.3V
- Onboard LEDs: One user-controllable LED
- Bootloader: Onboard UF2 bootloader for easy programming via USB
- Power Consumption: Low power consumption for battery-powered applications
- Debugging: SWD debug port
- Education: Ideal for teaching programming and electronics.
- Prototyping: Suitable for developing and testing embedded applications.
- IoT Projects: Perfect for Internet of Things (IoT) applications with various sensors and actuators.
- DIY Projects: Great for hobbyists creating custom gadgets and interactive installations.
- Embedded Systems: Useful for designing and implementing embedded systems for a wide range of applications.
