Description

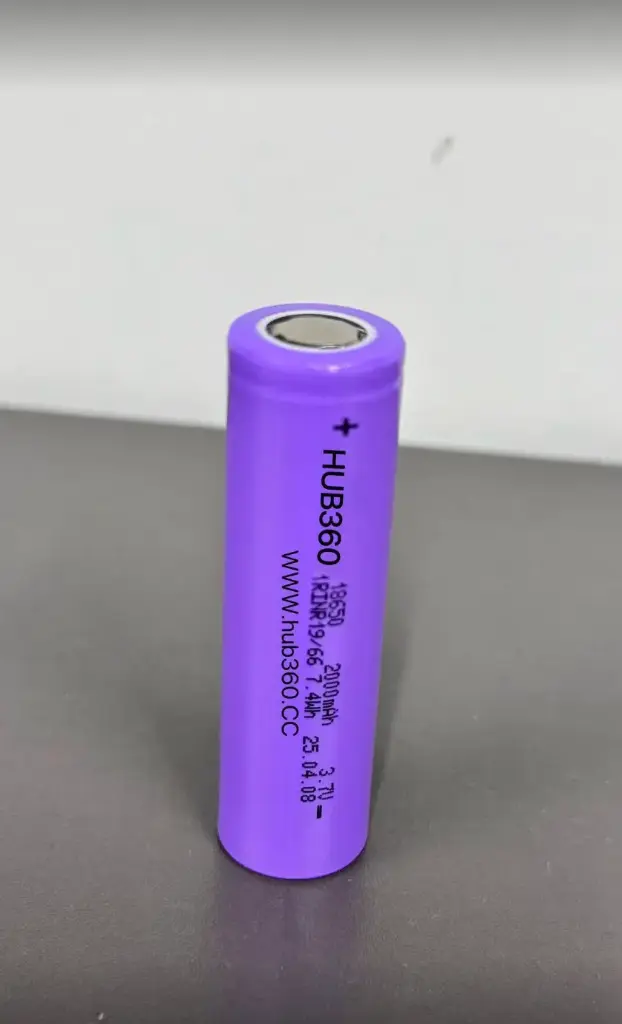

This 18650 Lithium-Ion Rechargeable Battery offers a nominal capacity of 2000mAh and operates at a nominal voltage of 3.7V, making it suitable for a wide range of portable electronic devices and DIY power projects. It supports a maximum continuous discharge current of 2C and features built-in safety mechanisms including CID (Current Interrupt Device) and PTC (Positive Temperature Coefficient) protection for enhanced reliability and safe operation under various conditions
Key Features
- Nominal Capacity: 2000mAh; suitable for moderate to high-drain applications
- Nominal Voltage: 3.7V; compatible with standard 18650 applications
- Maximum Discharge Current: 2C (up to 4A); supports moderate to high current draw
- Safety Protection: Equipped with CID (Current Interrupt Device) and PTC (Positive Temperature Coefficient); the PTC acts as a resettable fuse under overcurrent or overheating conditions, while the CID permanently disconnects the cell under overpressure conditions to prevent catastrophic failure
- Terminal Configuration: Available with button top (5-in-1 combined terminals) as specified
- Low Internal Resistance: Range of 25–48mΩ depending on variant, ensuring efficient power delivery
- International Safety Certifications: Compliant with CB, ROHS, BIS, IEC, KC, TUV, UN38.3, ISO, and CQC standards
- Long Cycle Life: Delivers 300–500 cycles at 0.5C charge/discharge with ≥80% capacity retention (depending on specific model variant)
Specification
| Parameter | Specification |
|---|---|
| Nominal Capacity | 2000mAh |
| Nominal Voltage | 3.7V |
| Maximum Discharge Current | 2C (up to 4A) |
| Standard Charge Current | 0.5C (1000mA) |
| Discharge Cut-off Voltage | 2.75V |
| Internal Impedance | 25–48mΩ (variant dependent) |
| Diameter | 18.3mm |
| Height | 65.0mm |
| Weight | 42.8g – 44.4g ±1g (variant dependent) |
| Terminal Type | Button top (5-in-1 / CID / PTC) |
| Safety Devices | CID (Current Interrupt Device) + PTC (Positive Temperature Coefficient) |
| Certifications | CB, ROHS, BIS, IEC, KC, TUV, UN38.3, ISO, CQC |
Applications
- Power Banks: Portable charging solutions for smartphones and tablets
- Flashlights: High-performance torches and tactical lights
- Portable Electronics: Bluetooth speakers, handheld devices, and cordless tools
- DIY Battery Packs: Custom battery assemblies for robotics, e-bikes, and solar storage
- Consumer Electronics: Laptops, cameras, and other portable devices
