Description

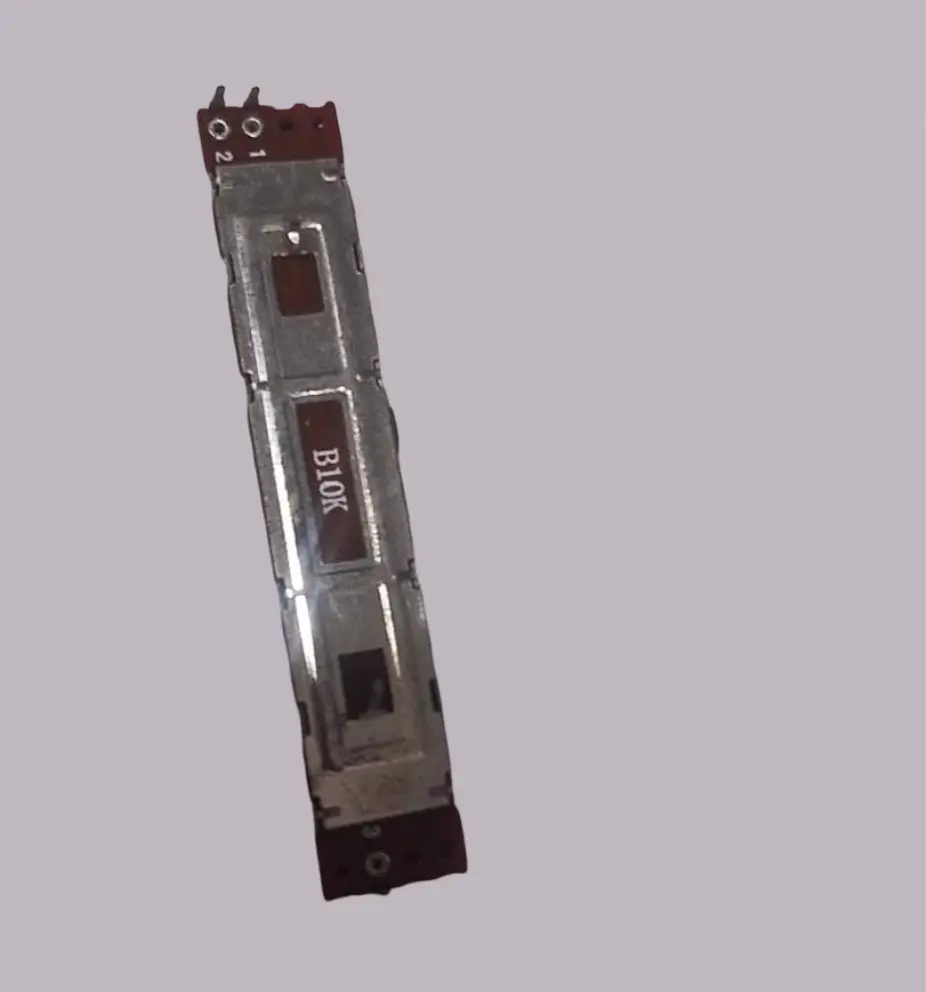

The Short Linear Amplifier Mixer Potentiometer is a compact, high-precision adjustable resistor designed specifically for audio signal control. It provides smooth and accurate linear adjustment for volume, tone, balance, and gain control in audio circuits. Thanks to its short body design, it is ideal for space-constrained audio equipment such as mixers, amplifiers, and compact electronic assemblies. Built with durable materials, this potentiometer ensures stable performance and long service life in both professional and DIY audio applications.
Key Features
- Linear Taper (B-Type): Provides uniform and predictable audio level adjustment
- Compact Short Design: Ideal for tight PCB layouts and compact enclosures
- High Precision Control: Smooth operation for accurate audio tuning
- Durable Construction: Designed for long mechanical life and stable performance
- Wide Resistance Options: Suitable for various audio circuit requirements
Specification
- Potentiometer Type: Linear (B-type)
- Resistance Values: 10kΩ / 50kΩ / 100kΩ (model dependent)
- Tolerance: ±10%
- Rated Power: 0.5W
- Maximum Operating Voltage: 200V DC
- Temperature Coefficient: ±100 ppm/°C
- Mechanical Life: Up to 100,000 cycles
- Adjustment Type: Short rotary or sliding (varies by model)
- Mounting Type: Through-hole or surface mount
- Operating Temperature Range: –10°C to +70°C
- Form Factor: Short body, lightweight construction
Application
- Audio Mixing Consoles: Volume, tone, and effects level control
- Audio Amplifiers: Gain and output level adjustment
- Synthesizers & Sound Modules: Precise parameter tuning
- Home Audio Equipment: Volume and tone control circuits
- Professional Audio Gear: Reliable signal adjustment in studio and live equipment
- DIY Audio Projects: Ideal for custom audio and electronics builds
