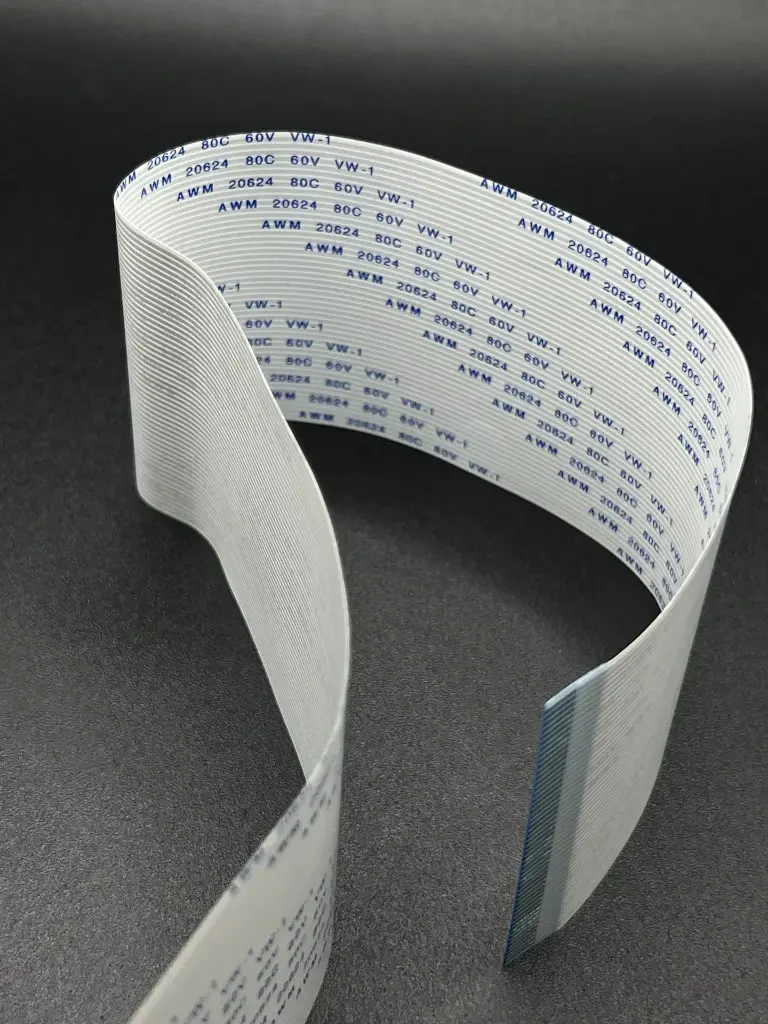

30 inch tiny Base flex connector F/B
The 30-inch Tiny Base Flex Connector F/B is a flexible flat cable (FFC) designed to connect female to board (F/B) connectors in electronic devices. This type of connector is commonly used in applications where space is limited, providing a flexible and reliable connection. It is ideal for connecting components such as displays, sensors, and other modules in compact electronic designs.
Key Features:
- Length: 30 inches (approximately 76 cm)
- Connector Type: Female-to-Board (F/B)
- Cable Type: Flexible flat cable (FFC)
- Pitch: Varies (commonly 0.5mm, 1.0mm, or 2.54mm)
- Conductors: Multiple conductors (typically 8, 10, 12, 20, etc.)
- Insulation: High-quality insulating material for durability and flexibility
- Compatibility: Suitable for a variety of electronic applications
- Length: 30 inches (76 cm)
- Width: Varies depending on the number of conductors and pitch
- Pitch: Common pitches are 0.5mm, 1.0mm, and 2.54mm
- Number of Conductors: Typically 8, 10, 12, 20, or other configurations
- Voltage Rating: Varies (typically up to 60V)
- Current Rating: Varies (typically up to 1A per conductor)
- Temperature Range: -20°C to 80°C
- Material: Conductors are usually copper; insulation is typically polyester or polyimide
- Flexibility: High flexibility for use in tight spaces and moving parts
- Durability: Designed to withstand repeated flexing and bending
- Displays: Connecting LCD or OLED displays to controllers or mainboards.
- Sensors: Interfacing various sensors in compact electronic assemblies.
- Modules: Connecting different modules in DIY electronics and prototyping.
- Consumer Electronics: Used in smartphones, tablets, laptops, and other devices where space-saving connections are essential.
- Industrial: Suitable for use in industrial equipment and machinery requiring flexible interconnections.
