Description

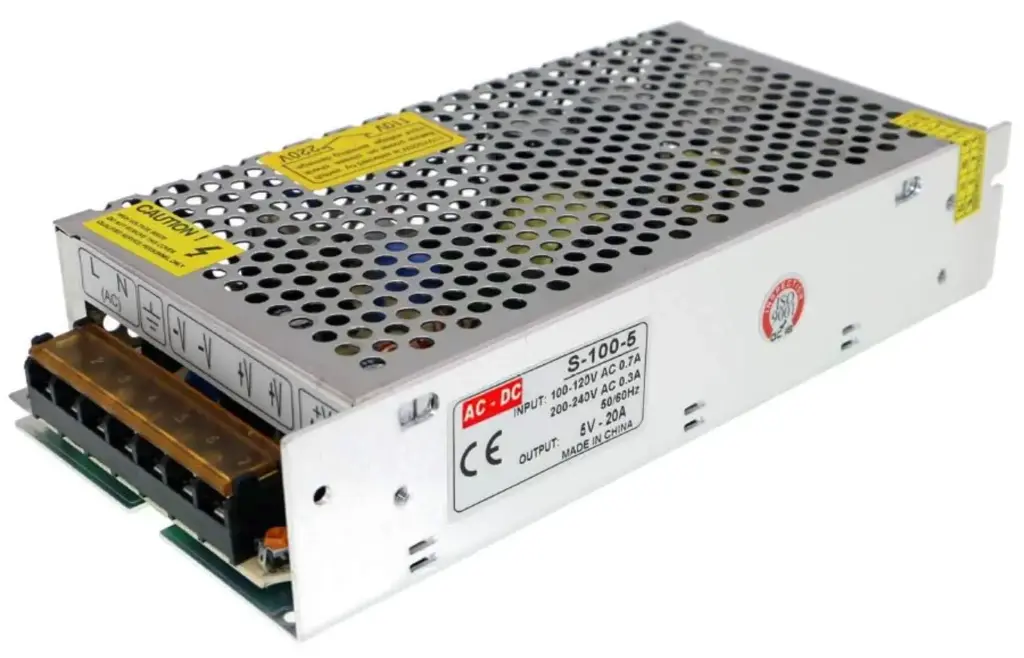

The 5V 20A Power Supply (100W) is a high-performance, heavy-duty power source designed to deliver a stable 5V DC output with up to 20A of current. Engineered for demanding applications, it’s ideal for powering multiple single-board computers, large LED installations, industrial control systems, and high-current electronic projects. With integrated over-voltage, over-current, and short-circuit protection, this power supply ensures safe and reliable operation under continuous load.
Key Features
- High Current Output: Provides up to 20A at 5V DC for power-hungry applications
- Stable & Regulated Output: Ensures consistent voltage delivery for sensitive electronics
- Comprehensive Protection: Built-in over-voltage, over-current, and short-circuit protection
- Universal Input Voltage: Operates from 100–240V AC, suitable for worldwide use
- Efficient Cooling: Equipped with an active cooling fan for optimal heat dissipation
- High Efficiency: Ensures minimal power loss and stable performance under full load
- Durable Build: Housed in a sturdy metal enclosure with screw terminal connections
- Certified Safe: CE, FCC, and RoHS compliant for quality and safety assurance
Specification
- Output Voltage: 5V DC ±5%
- Output Current: 20A
- Power Output: 100W
- Input Voltage: 100–240V AC, 50/60Hz
- Ripple & Noise: ≤ 120mV
- Load Regulation: ±2%
- Line Regulation: ±1%
- Operating Temperature: -10°C to +60°C
- Storage Temperature: -20°C to +85°C
- Humidity: 0%–95% non-condensing
- Cooling Method: Active cooling via built-in fan
- Connector Type: Screw terminals
- Dimensions: Approx. 200mm × 100mm × 50mm
- Weight: Approx. 500g
Application
- Single-Board Computers: Power multiple Raspberry Pi, Arduino, or ESP32 boards simultaneously
- LED Installations: Ideal for powering large 5V LED strip arrays and lighting projects
- DIY & Maker Projects: Suitable for hobbyists and tinkerers building high-power electronic systems
- Industrial Control Systems: Provides reliable power for automation and embedded control circuits
- Communication Equipment: Powers routers, network switches, and radio communication devices
- Server & Lab Use: Supports small servers, test benches, and high-power 5V applications.
