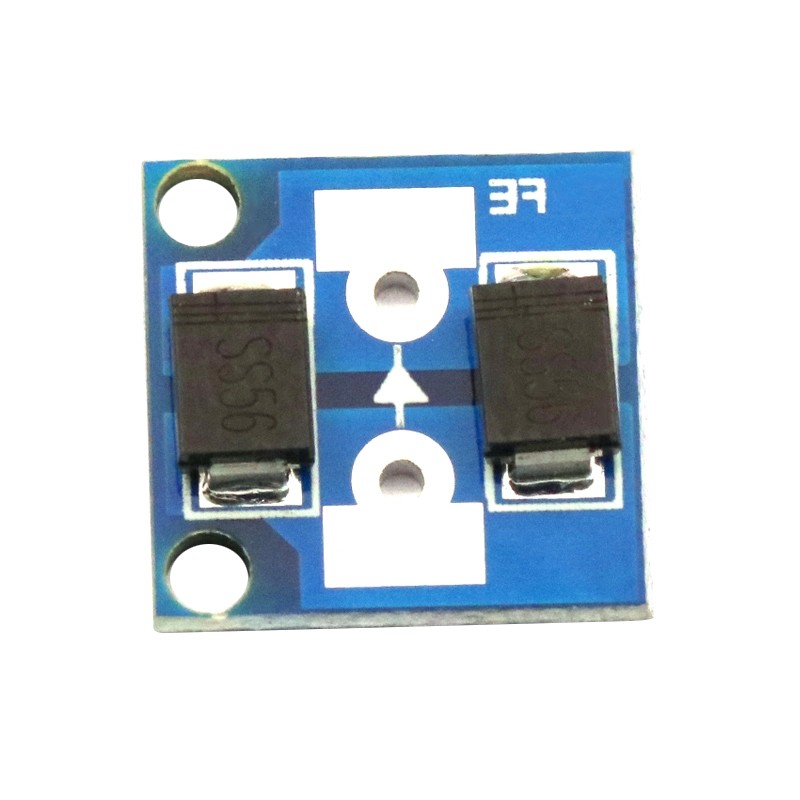

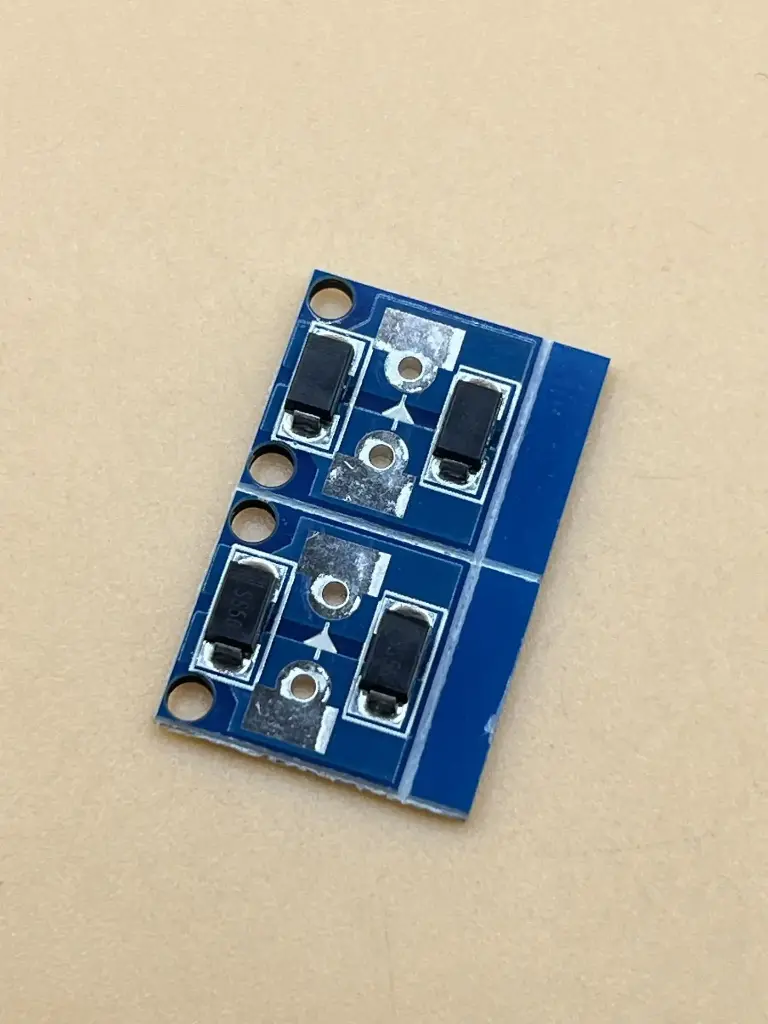

10A Anti reverse diode board
The 10A Anti-Reverse Diode Board is a compact and efficient backflow prevention solution designed for solar panels, batteries, and DC power systems. Utilizing dual SS56 Schottky diodes in parallel, it provides low forward voltage drop and high current handling in a small footprint.
Key Features:
- 10A Current Capacity: Handles high-load DC circuits
- Schottky Diodes: Low voltage drop and fast switching
- Reverse Polarity Protection: Prevents backflow in charging systems
- Compact Design: Fits easily into existing circuits
- Wide Input Range: Supports up to 60V input
- Thermal Resilience: Operates from -40°C to +85°C
- Ideal for Solar Systems: Prevents reverse discharge during low light
- Model: 10A Anti-Reverse Diode Board
- Input Voltage: Up to 60V DC
- Current Rating: 10A (continuous)
- Diode Type: SS56 Schottky (dual in parallel)
- Voltage Drop: Low (typical of Schottky diodes)
- Operating Temp: -40°C to +85°C
- PCB Size: 13 mm × 12 mm × 4 mm
- Weight: ~5 g
- Mount Type: SMD components on compact PCB
- Solar panel reverse current protection
- Battery backflow prevention
- DIY constant current charging modules
- Parallel connection protection in DC systems
- Low-loss diode replacement in high-current projects
