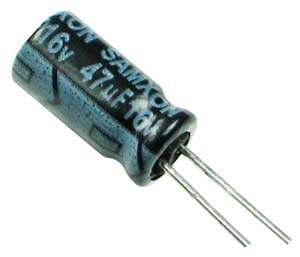

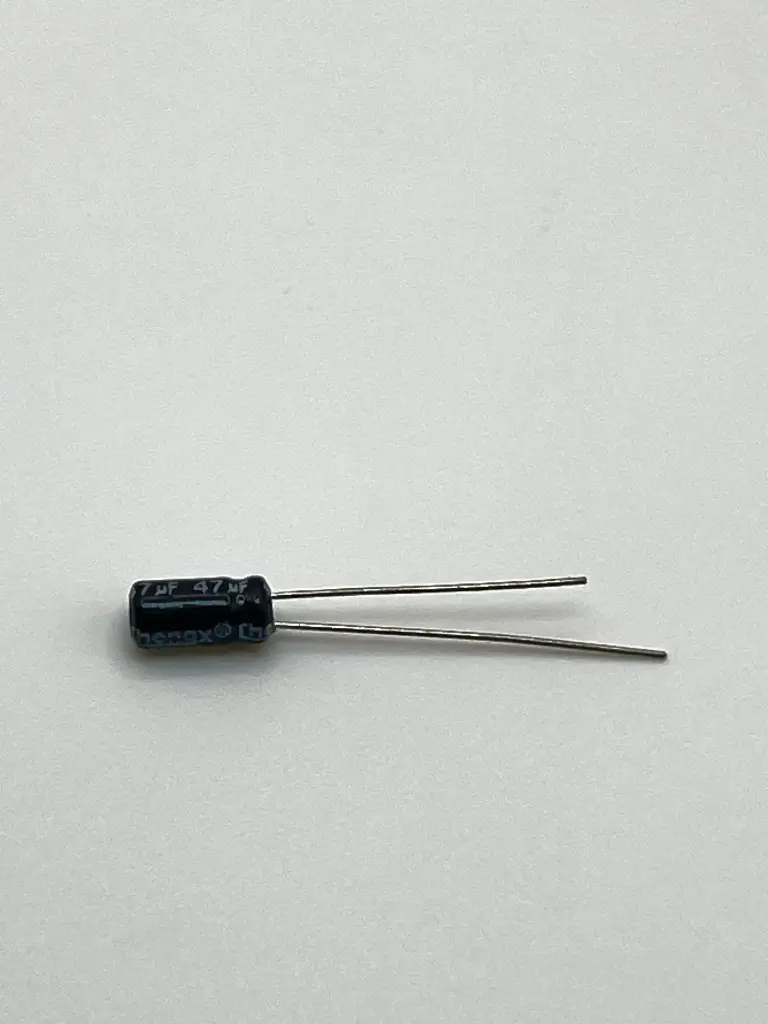

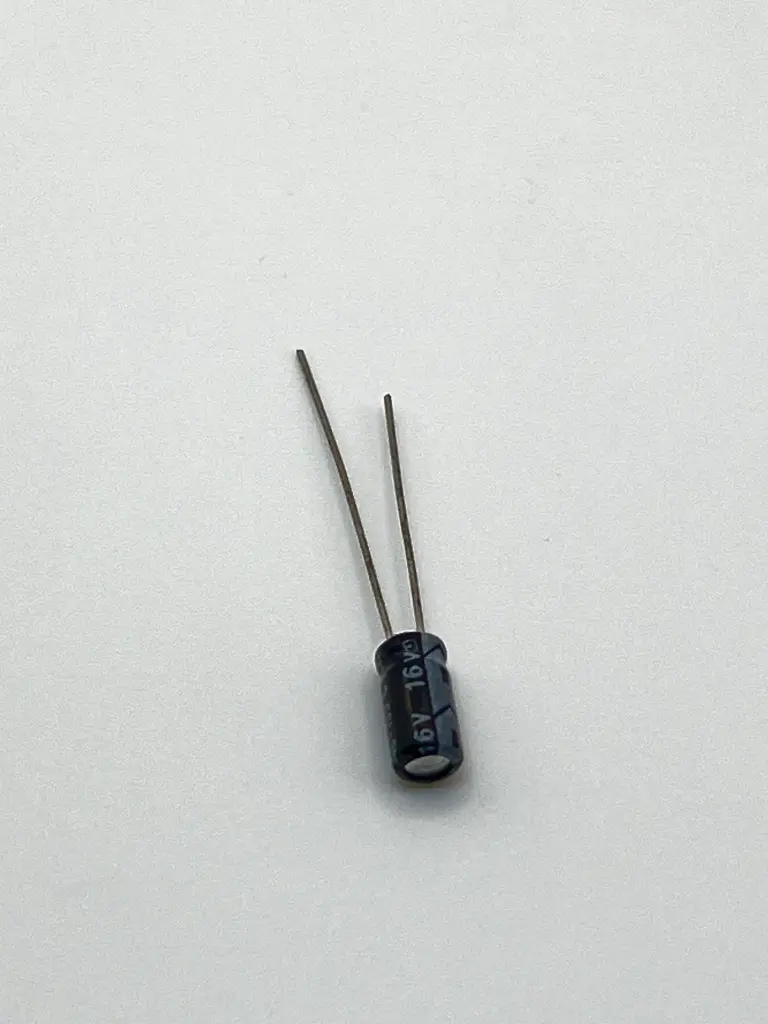

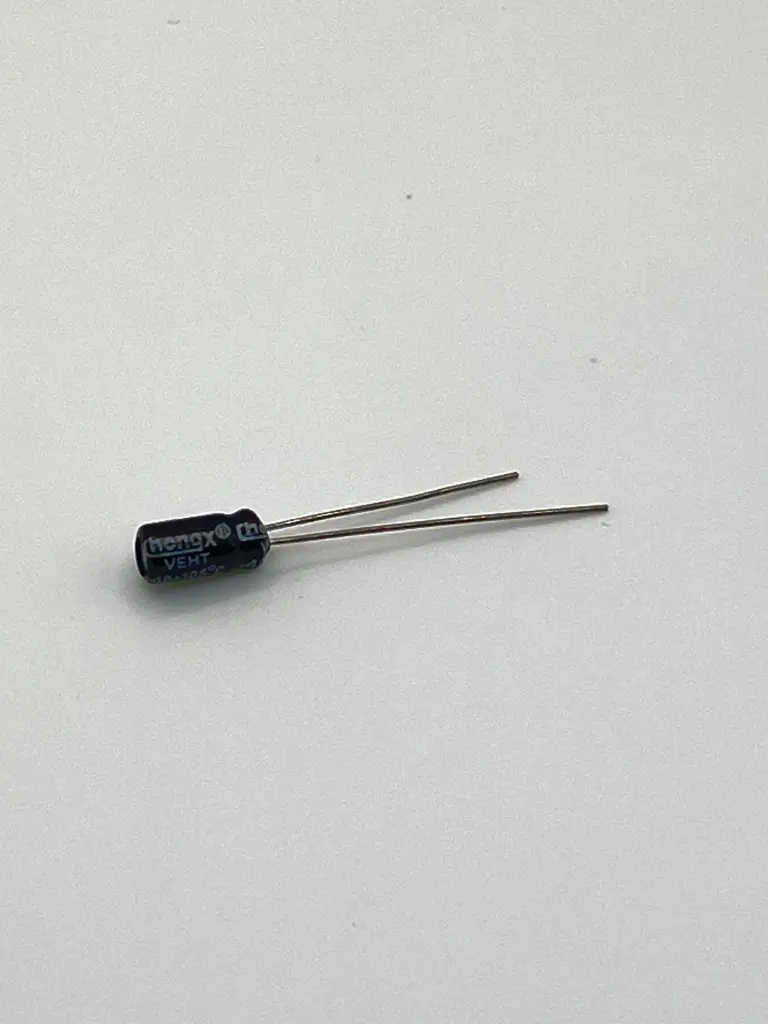

47uF 16V electrolytic capacitor
The 47µF 16V Electrolytic Capacitor is a polarized capacitor commonly used in electronic circuits for filtering, decoupling, and energy storage. It is known for its high capacitance-to-volume ratio, making it suitable for applications requiring significant energy storage in a compact form. This capacitor is widely used in power supplies, audio equipment, and general-purpose electronic circuits.
Key Features:
- Capacitance value of 47µF
- Rated voltage of 16V DC
- High capacitance-to-volume ratio
- Polarized (has a positive and negative lead)
- Long operational life
- Reliable performance in various applications
- Capacitance: 47µF
- Rated Voltage: 16V DC
- Tolerance: ±20% (typical)
- Temperature Range: -40°C to +85°C (varies by manufacturer)
- Leakage Current: ≤ 0.03CV or 3µA (whichever is greater, after 2 minutes)
- Equivalent Series Resistance (ESR): Low (varies by manufacturer)
- Ripple Current: 100mA to 200mA (depends on frequency and temperature)
- Dimensions:
- Diameter: 5mm to 6.3mm
- Height: 7mm to 11mm
- Lead Spacing: 2mm to 2.5mm
- Mounting Type: Through-hole
- Power Supplies: Used for filtering and smoothing output voltages.
- Audio Equipment: Provides decoupling and signal coupling in audio circuits.
- General Purpose: Suitable for various electronic projects and prototyping.
- Timing Circuits: Utilized in timing and pulse generation circuits.
- Energy Storage: Stores energy in low-power electronic devices.
