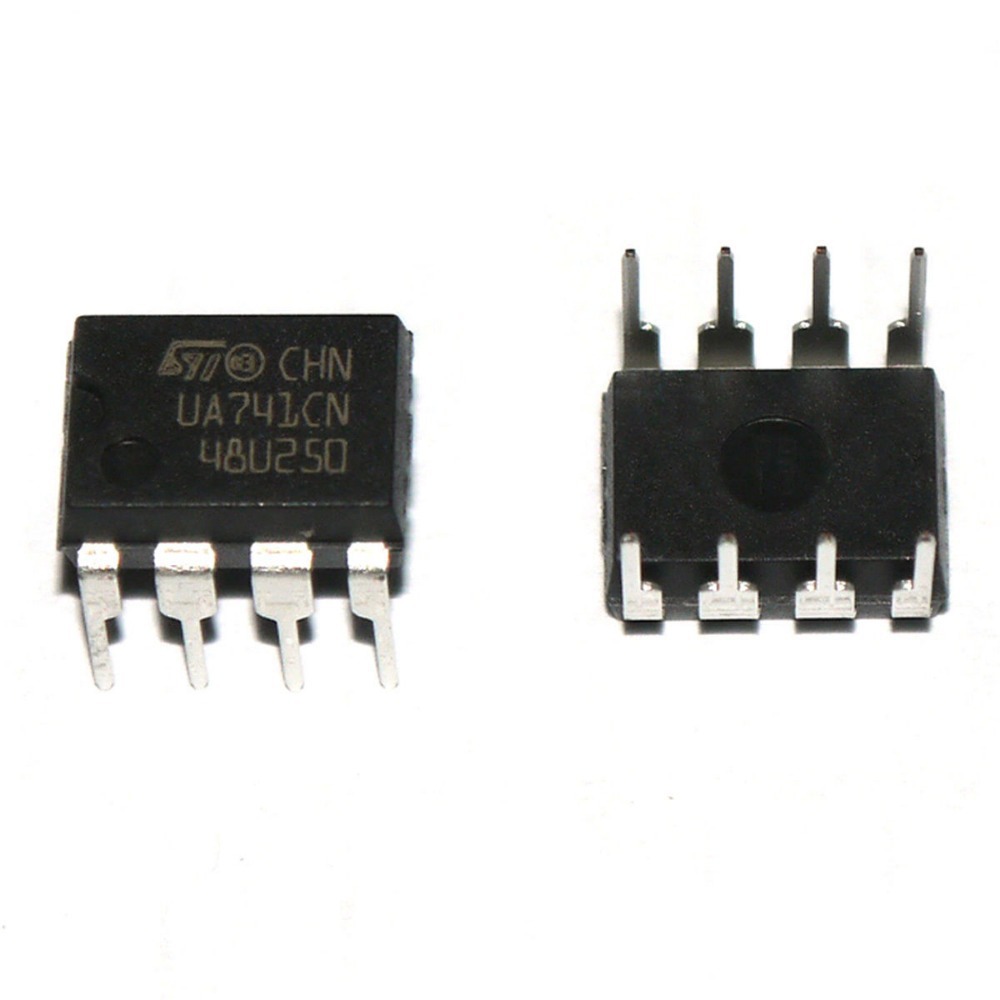

UA741 (LM741 Alternative) op amp
The UA741 is a general-purpose operational amplifier featuring offset-voltage null capability. The high-gain, internally frequency-compensated op-amp is designed to operate from a single or dual power supply over a wide range of voltages. It is an ideal choice for applications requiring low input bias current, low offset voltage, and high input impedance.
Key Features:
- Internally frequency compensated for unity gain
- Large signal voltage gain of 106 dB
- Wide power supply range: ±10V to ±15V
- Short-circuit protection
- Offset-voltage null capability
- Low input bias current: 80 nA (typical)
- High input impedance: 2 MΩ (typical)
- Low power consumption
- Compatible with standard LM741 pin configurations
- Supply Voltage Range: ±10V to ±22V
- Input Offset Voltage: 1 mV (typical)
- Input Bias Current: 80 nA (typical)
- Input Impedance: 2 MΩ (typical)
- Output Impedance: 75Ω (typical)
- Large Signal Voltage Gain: 106 dB (typical)
- Unity-Gain Bandwidth: 1 MHz (typical)
- Slew Rate: 0.5 V/µs (typical)
- Common Mode Rejection Ratio (CMRR): 90 dB (typical)
- Power Supply Rejection Ratio (PSRR): 96 dB (typical)
- Operating Temperature Range: 0°C to +70°C
- Package Types: 8-pin PDIP, SOIC, TO-99
- Signal conditioning
- Voltage followers
- Integrators and differentiators
- Active filters
- General-purpose analog applications
- Audio amplifiers
- Industrial controls
- Data acquisition systems
- Connection:
- Connect the power supply to the V+ and V- pins.
- Connect the input signal to the inverting (−) or non-inverting (+) input pin.
- Connect the output to the desired load or next stage of the circuit.
- Use the offset null pins if necessary to adjust the input offset voltage.
- Configuration:
- Configure the op-amp in the desired configuration (e.g., voltage follower, inverting amplifier, non-inverting amplifier) by connecting the appropriate feedback components.
- Adjust the gain and frequency response using external resistors and capacitors.
- Protection:
- Use proper decoupling capacitors on the power supply lines to reduce noise and improve stability.
- Ensure the op-amp is within the recommended supply voltage range to prevent damage.
- Observe proper handling procedures to avoid electrostatic discharge (ESD) damage.
- Ensure the input signals are within the common-mode voltage range to prevent improper operation.
- Avoid exceeding the maximum ratings for voltage, current, and temperature.
