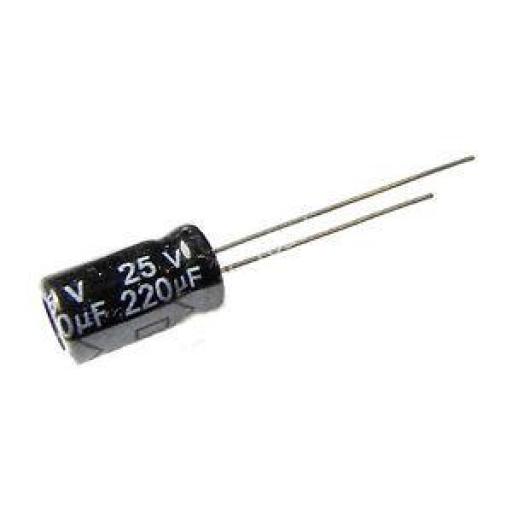

220uF 25V electrolytic capacitor
The 220µF 25V Electrolytic Capacitor is a polarized capacitor used for various electronic applications where medium capacitance and voltage stability are required. It is commonly used for filtering, decoupling, and energy storage in power supplies, audio circuits, and general electronic circuits. The capacitor provides reliable performance and efficient energy storage in a compact form factor.
Key Features:
- Capacitance value of 220µF
- Rated voltage of 25V DC
- High capacitance-to-volume ratio
- Polarized (has a positive and negative lead)
- Long operational life
- Reliable performance in various applications
- Capacitance: 220µF
- Rated Voltage: 25V DC
- Tolerance: ±20% (typical)
- Temperature Range: -40°C to +85°C (varies by manufacturer)
- Leakage Current: ≤ 0.03CV or 3µA (whichever is greater, after 2 minutes)
- Equivalent Series Resistance (ESR): Low (varies by manufacturer)
- Ripple Current: 200mA to 500mA (depends on frequency and temperature)
- Dimensions:
- Diameter: 6mm to 10mm
- Height: 10mm to 20mm
- Lead Spacing: 2.5mm to 5mm
- Mounting Type: Through-hole
- Power Supplies: Used for filtering and stabilizing output voltages.
- Audio Equipment: Provides decoupling and coupling in audio circuits.
- General Purpose: Suitable for various electronic projects and prototyping.
- Timing Circuits: Utilized in timing and pulse generation circuits.
- Energy Storage: Efficient for storing energy in small electronic devices.
