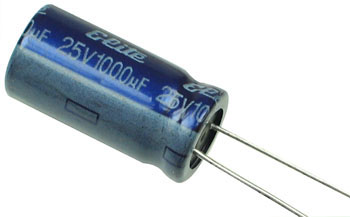

1000uF 25V electrolytic capacitor
The 1000µF 25V Electrolytic Capacitor is a polarized capacitor widely used in electronic circuits for filtering, decoupling, and energy storage. With its high capacitance and voltage rating, it is suitable for applications requiring significant energy storage and smoothing of power supply outputs. This capacitor is commonly used in power supplies, audio equipment, and general-purpose electronic circuits.
Key Features:
- Capacitance value of 1000µF
- Rated voltage of 25V DC
- High capacitance-to-volume ratio
- Polarized (has a positive and negative lead)
- Long operational life
- Reliable performance in various applications
- Capacitance: 1000µF
- Rated Voltage: 25V DC
- Tolerance: ±20% (typical)
- Temperature Range: -40°C to +85°C (varies by manufacturer)
- Leakage Current: ≤ 0.03CV or 3µA (whichever is greater, after 2 minutes)
- Equivalent Series Resistance (ESR): Low (varies by manufacturer)
- Ripple Current: 1.0A to 1.5A (depends on frequency and temperature)
- Dimensions:
- Diameter: 10mm to 16mm
- Height: 20mm to 30mm
- Lead Spacing: 5mm to 7.5mm
- Mounting Type: Through-hole
- Power Supplies: Used for filtering and smoothing output voltages.
- Audio Equipment: Provides decoupling and signal coupling in audio circuits.
- General Purpose: Suitable for various electronic projects and prototyping.
- Timing Circuits: Utilized in timing and pulse generation circuits.
- Energy Storage: Stores energy in low-power electronic devices.
