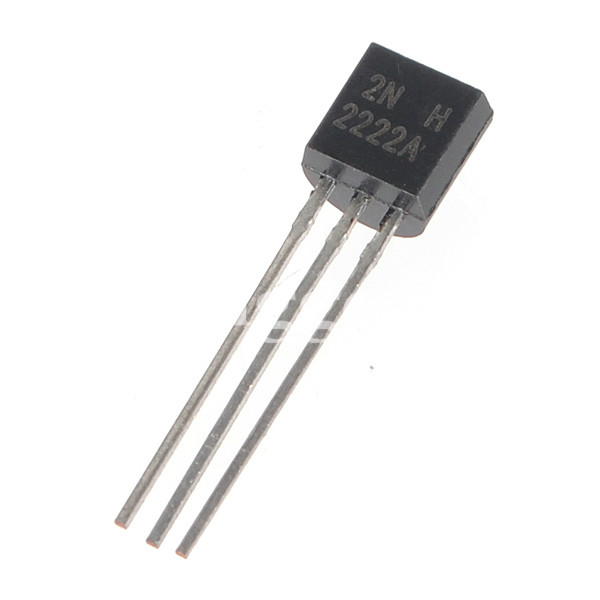

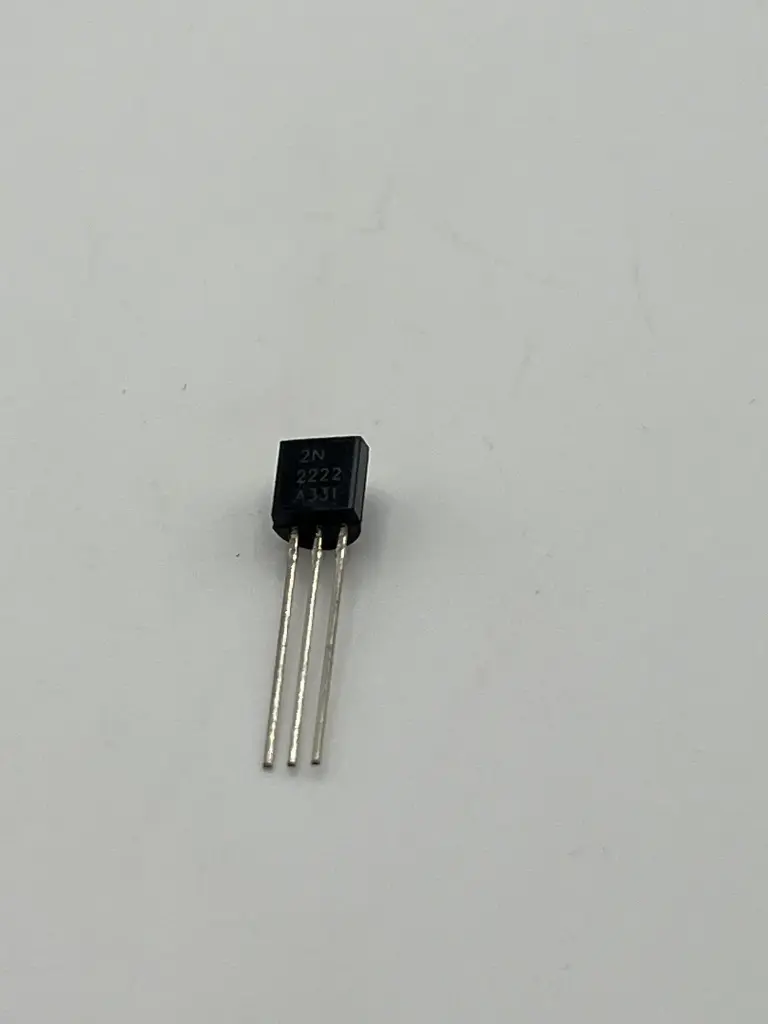

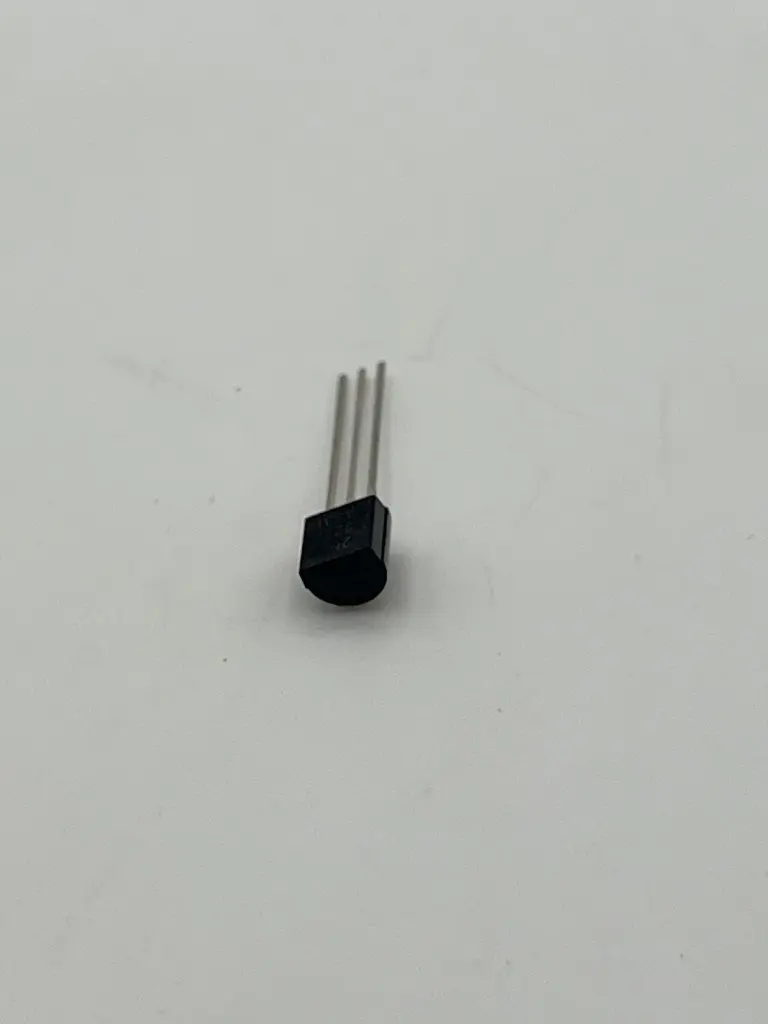

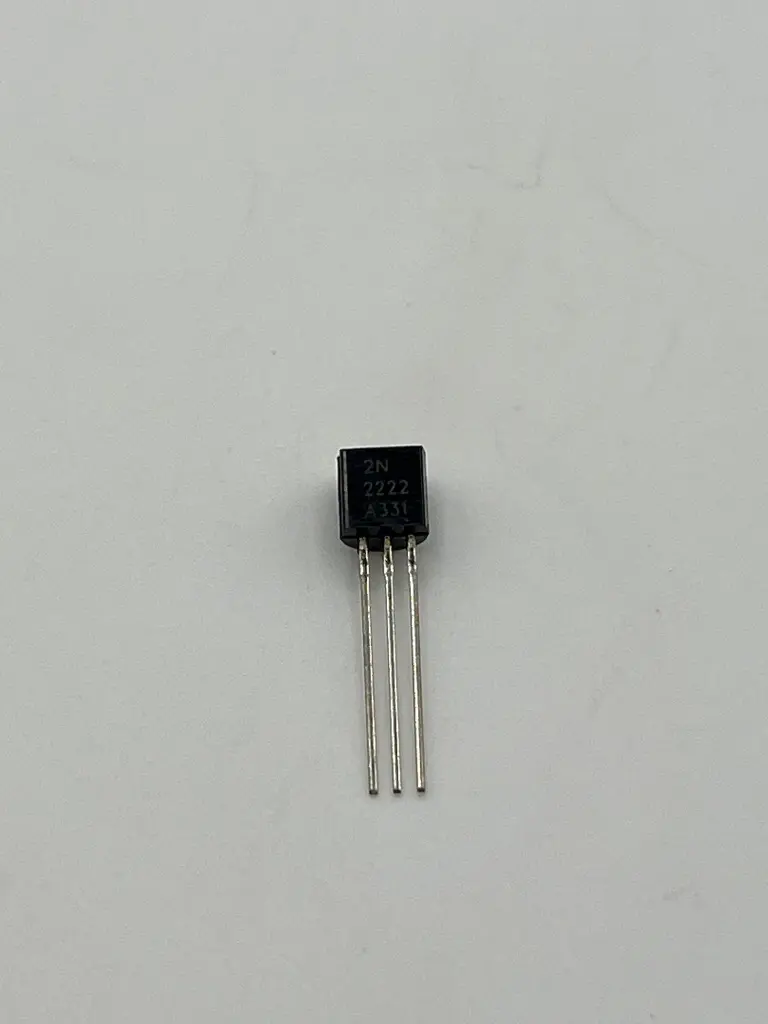

2N2222 Transistor
The 2N2222 is a widely used NPN bipolar junction transistor (BJT) known for its versatility in general-purpose switching and amplification applications. It is designed for high-speed switching and low power applications, making it suitable for a wide range of electronic projects. The 2N2222 is commonly used in educational projects, DIY electronics, and professional circuits.
Key Features:
- NPN Bipolar Junction Transistor: Standard NPN configuration for easy integration.
- High-Speed Switching: Suitable for high-speed switching applications.
- Low Power Consumption: Efficient operation with minimal power loss.
- Wide Range of Applications: Versatile for various electronic circuits.
- Robust Design: Reliable performance with a durable construction.
- Transistor Type: NPN
- Collector-Emitter Voltage (Vce): 40V
- Collector-Base Voltage (Vcb): 75V
- Emitter-Base Voltage (Veb): 6V
- Collector Current (Ic): 800mA
- Power Dissipation (Pd): 500mW
- Transition Frequency (ft): 250 MHz
- DC Current Gain (hFE): 35 to 300
- Package Type: TO-18 (metal can), also available in TO-92 (plastic package)
- Switching Circuits: Used in switching applications due to its high-speed capabilities.
- Amplification: Suitable for signal amplification in audio and RF circuits.
- Oscillators: Utilized in oscillator circuits for frequency generation.
- Digital Logic Circuits: Used in digital logic and interfacing applications.
- Power Management: Applied in power management circuits for efficient power control.
- DIY Projects: Common in hobbyist and educational electronic projects.
- Circuit Design: Integrate the 2N2222 transistor into your circuit design based on its switching or amplification role.
- Biasing: Ensure proper biasing of the transistor for optimal performance.
- Connections: Connect the collector, base, and emitter terminals to the appropriate points in your circuit.
- Testing: Test the circuit to verify the transistor's functionality and performance.
- Implementation: Use the transistor in your final project, ensuring it operates within the specified limits.
- Heat Dissipation: Ensure adequate heat dissipation to prevent overheating.
- Voltage and Current Limits: Operate within the specified voltage and current limits to avoid damage.
- Handling: Handle the transistor with care to avoid electrostatic discharge (ESD) damage.
