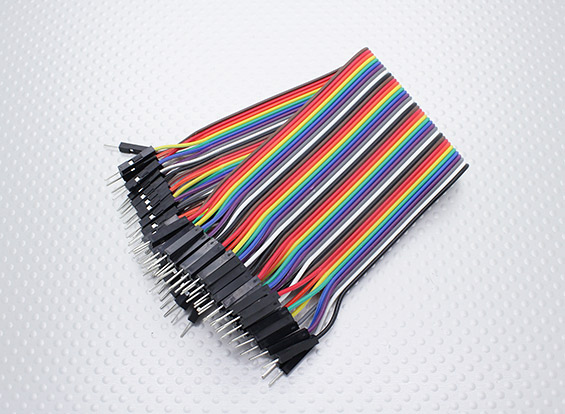

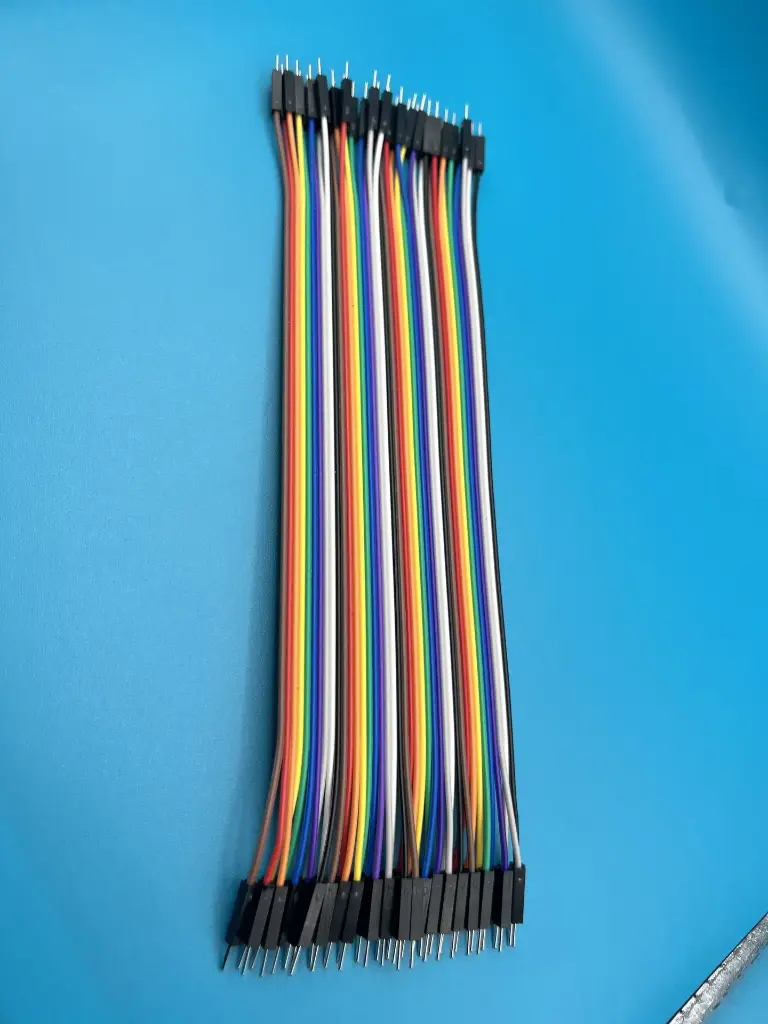

Male-male Jumper wires (set)

The Male-Male Jumper Wires (Set) is an essential component for breadboarding and prototyping in electronics projects. These wires are used to establish quick and reliable connections between various points in a circuit, such as between the pins of a microcontroller, sensors, modules, and other components. The set typically includes a variety of lengths and colors to help with organizing and identifying connections. Key Features:

• Easy and quick connections for breadboards and other prototyping environments
• Variety of lengths and colors for flexibility and organization
• Durable and reusable
• Compatible with standard 0.1” (2.54mm) pitch headers
• Ideal for Arduino, Raspberry Pi, and other microcontroller projects

Technical Specifications:

• Connector Type: Male to Male
• Pin Spacing: 0.1” (2.54mm)
• Wire Lengths: Varies (typically 10cm, 20cm, and 30cm)
• Wire Gauge: 24 AWG
• Insulation Material: PVC
• Conductor Material: Copper or copper-clad aluminum
• Colors: Multiple (e.g., red, blue, green, yellow, black, white)
• Quantity: Typically 40 wires per set (may vary)

Applications:

• Breadboarding and prototyping
• Microcontroller and development board projects
• Interfacing sensors and modules
• Educational and DIY electronics projects
• Connecting components in a temporary setup

Usage:

1. Connecting Components:
   • Use the jumper wires to connect the pins of different components on a breadboard or between header pins on development boards.
   • Ensure firm and secure connections by inserting the male ends into the breadboard or header sockets.
2. Organizing Circuits:
   • Use different colors to identify various connections and signals, making the circuit easier to debug and understand.
   • Select appropriate wire lengths to minimize clutter and ensure neat and organized prototyping.
3. Reusability:
   • Jumper wires can be reused in multiple projects, making them a cost-effective solution for prototyping.

Caution:

• Handle with care to avoid damaging the wire insulation or connectors.
• Ensure correct connections to avoid short circuits or incorrect wiring.
• Store in a dry and cool place to maintain the integrity of the connectors and insulation.

Datasheet: Refer to the specific manufacturer's datasheet or product details for more information if available.
