Description

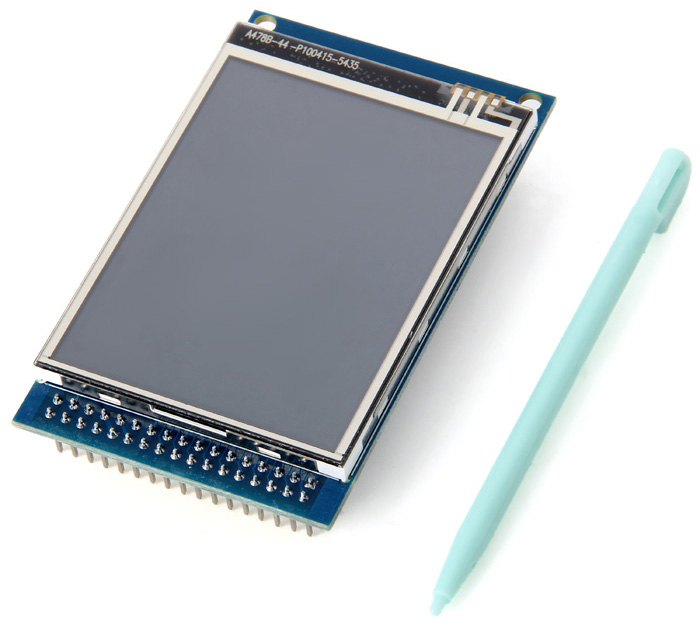

The 3.2-inch TFT Touch LCD Module is a compact, full-color display designed for embedded and interactive applications. It delivers bright, high-quality graphics and includes either a resistive or capacitive touch panel, enabling intuitive user interfaces for control panels, handheld devices, and various microcontroller-based projects. The module communicates through SPI or I2C, making it easy to integrate with Arduino, ESP32, STM32, and other platforms.
Key Features
- 3.2-inch full-color TFT display
- Bright and clear graphical output
- Built-in touch panel (resistive or capacitive, depending on the model)
- Supports SPI or I2C communication
- Low operating power
- Wide viewing angle
- LED backlight for improved visibility
Specification
- The display type is a TFT LCD panel.
- The diagonal screen size is 3.2 inches.
- The resolution is 320 × 240 pixels (QVGA).
- Touch input is provided by either a resistive or capacitive touch layer.
- The communication interface is SPI or I2C, depending on module version.
- The module supports a wide viewing angle.
- The backlight is powered by LED illumination.
- The operating voltage is 3.3V or 5V, depending on the controller board.
- It functions within an ambient temperature range of –20°C to +70°C.
Application
- Embedded systems and microcontroller-based projects
- Handheld or portable electronic devices
- Touch-based interactive interfaces
- Industrial and consumer control panels
- GUI prototyping and interface development
Usage Guide
- Connect the display to your microcontroller using the SPI or I2C interface.
- Install appropriate libraries and drivers depending on your platform (Arduino, ESP32, STM32, etc.).
- Configure the display parameters in software to match the module’s resolution and driver IC.
- Develop your GUI and integrate touch controls.
- Calibrate the touch panel as needed for accurate touch response.
Caution
- Handle the display carefully to avoid damaging the screen or touch layer.
- Ensure that the module receives the correct power supply voltage.
- Avoid prolonged exposure to extreme temperature or humidity.
Datasheet: For detailed technical specifications, refer to the 3.2 inches TFT Touch LCD Module Datasheet.
