Description

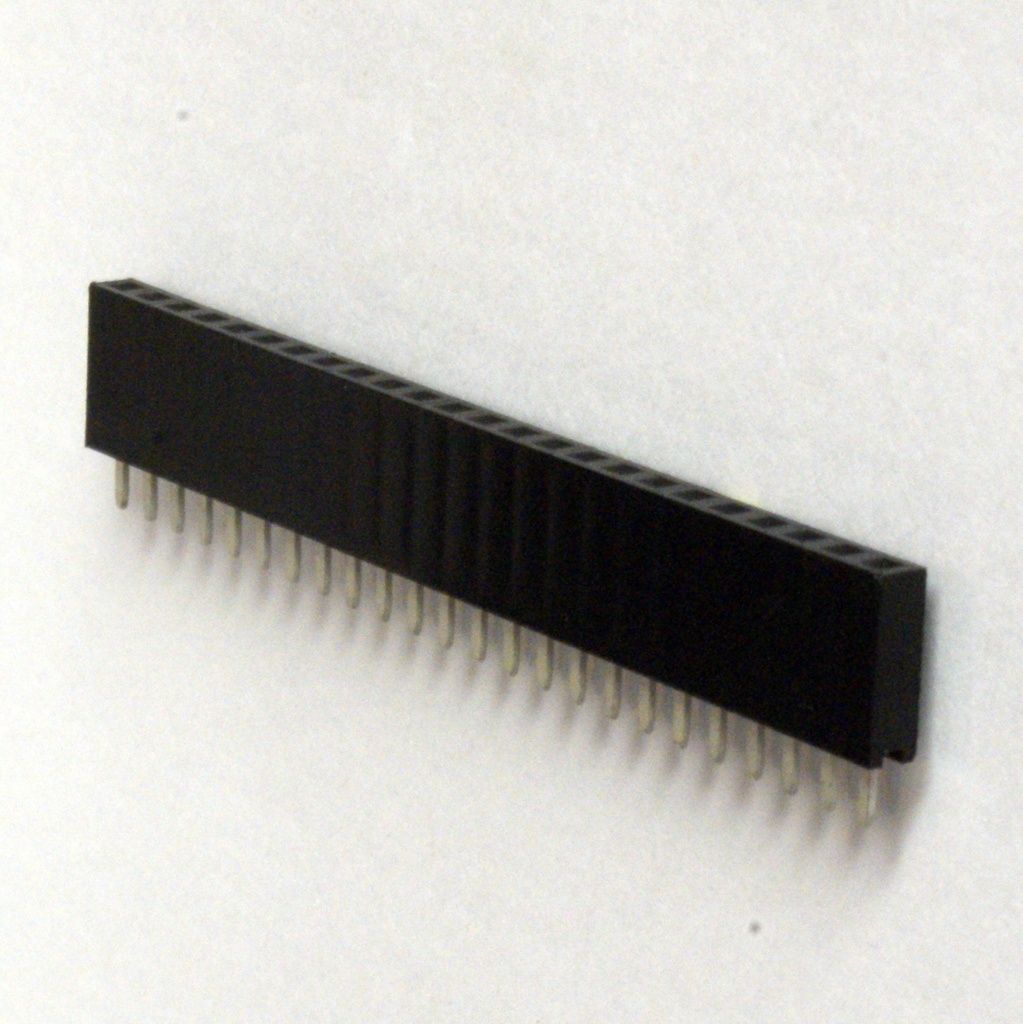

The 2.54mm Female SIL (Single Inline) Header is a versatile connector used to interface with electronic circuits. It features a row of female sockets that match a 2.54mm (0.1 inch) pin spacing, making it suitable for use with standard male pin headers, ICs, and modules . This 40-pin version provides ample connections for complex projects, and its single-row configuration and right-angle design make it ideal for space-constrained PCB layouts . It is commonly used in circuit boards for connecting various electronic components, providing a reliable connection in a compact and space-efficient form.
Key Features
- 2.54mm (0.1 inch) pitch: standard spacing for breadboards, Arduino, and most development boards
- 40 pins: ample connections for complex projects and multi-module setups
- Female connectors: for interfacing with male pin headers, ICs, and module pins
- Single row configuration: straightforward alignment and easy soldering
- Right angle design: suitable for low-profile installations where vertical space is limited
- Gold-plated contacts: enhances conductivity and resists corrosion for reliable connections
- High-temperature plastic body: withstands soldering heat and provides good insulation (rated up to 180°C)
- Suitable for PCB mounting: easy integration into custom boards and prototypes
- Reliable and durable connection: designed for repeated mating cycles (typically 50–100 cycles)
Specifications
| Parameter | Specification |
|---|---|
| Pitch (Pin Spacing) | 2.54mm (0.1 inch) |
| Configuration | Single row |
| Number of Pins | 40 pins |
| Contact Material | Brass or phosphor bronze |
| Contact Plating | Gold plating (typically 0.8μm ~ 1.0μm) or Tin plating |
| Body Material | High-temperature plastic (PBT, PA6T, or LCP) |
| Operating Temperature Range | -40°C to +105°C |
| Current Rating | 1A to 3A per pin (depending on contact plating and pin count) |
| Insulation Resistance | ≥1000 MΩ at 500V DC |
| Contact Resistance | ≤20 mΩ (initial) |
| Soldering Temperature | Up to 260°C (wave soldering) |
Applications
- PCB Interfacing: Used for connecting components to a printed circuit board (PCB)
- Prototyping: Commonly used in breadboards and prototyping boards for circuit development
- Module Connections: Suitable for interfacing with modules and expansion boards
- Consumer Electronics: Applied in various electronic devices and systems
- Arduino and Raspberry Pi Projects: Connect shields, sensors, and breakout boards
- Wire Harnesses: Create custom cable assemblies for internal device wiring.
Datasheet: For detailed technical specifications, refer to the 2.54mm Female SIL Header Datasheet.
