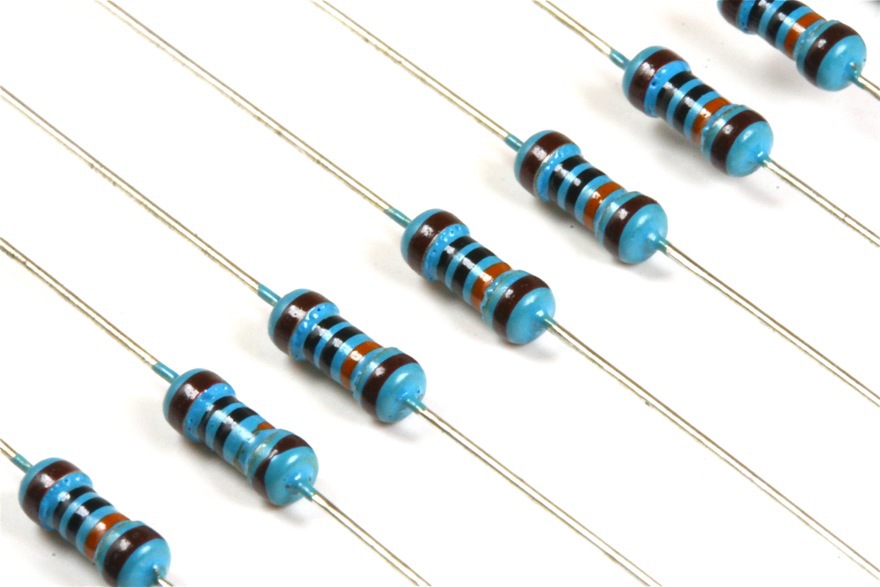

100KΩ 1/4W resistor
The 100KΩ 1/4W resistor is a fixed resistor used to manage current and voltage levels in electronic circuits. With a resistance of 100,000 ohms and a power rating of 0.25 watts, it is suitable for various low-power applications that require stable and precise resistance.
Key Features:
- Resistance value: 100KΩ (100,000 ohms)
- Power rating: 1/4 watt (0.25W)
- Tolerance: ±5% (standard) or ±1% (precision)
- Type: Fixed resistor
- Lead type: Axial leads for through-hole mounting
- Resistance: 100KΩ
- Power Rating: 0.25W
- Tolerance: ±5% (standard), ±1% (precision)
- Operating Temperature Range: -55°C to +155°C
- Temperature Coefficient: ±200 ppm/°C (typical)
- Package Type: Axial through-hole
- Voltage dividers
- Signal conditioning
- Biasing circuits
- Pull-up/pull-down resistors
- General electronic circuits
- Place the resistor in the circuit according to the design requirements.
- Insert the leads into the circuit board and solder them in place.
- Check connections to ensure proper placement and avoid short circuits.
- Test the circuit to confirm that it operates correctly with the resistor in place.
- Do not exceed the resistor’s power rating to avoid overheating.
- Handle with care to prevent damage to the resistor or its leads.
- Verify correct resistor placement and orientation in the circuit.
