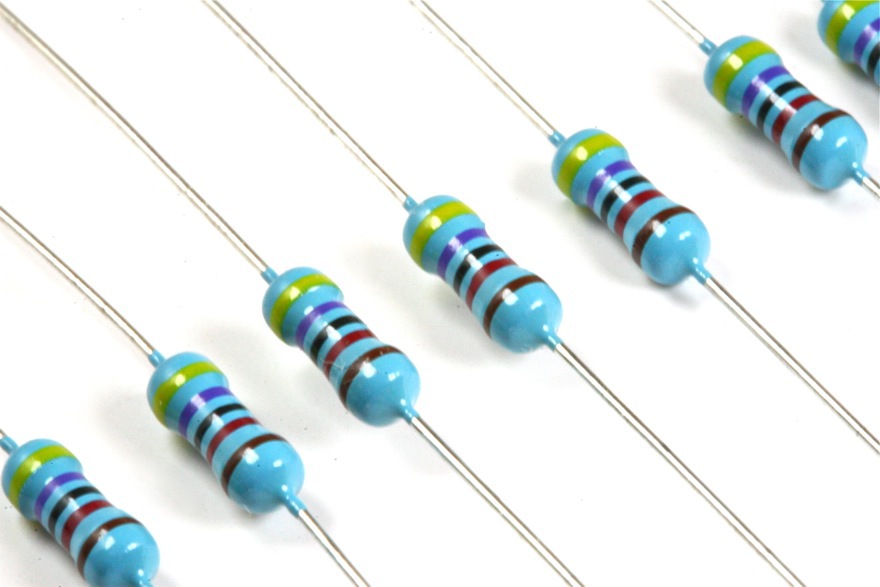

47KΩ 1/4W resistor
The 47KΩ 1/4W resistor is a fixed resistor used for current limiting, voltage division, and impedance matching in electronic circuits. With a resistance value of 47,000 ohms and a power rating of 0.25 watts, it is suitable for various low-power applications.
Key Features:
- Resistance value: 47KΩ (47,000 ohms)
- Power rating: 1/4 watt (0.25W)
- Tolerance: ±5% (standard) or ±1% (precision)
- Type: Fixed resistor
- Lead type: Axial leads for through-hole mounting
- Resistance: 47KΩ
- Power Rating: 0.25W
- Tolerance: ±5% (standard), ±1% (precision)
- Operating Temperature Range: -55°C to +155°C
- Temperature Coefficient: ±200 ppm/°C (typical)
- Package Type: Axial through-hole
- Voltage dividers
- Pull-up/pull-down resistors
- Biasing circuits
- Signal conditioning
- Filtering applications
- Identify the required resistance value and power rating for your circuit.
- Insert and solder the resistor into the appropriate positions on the circuit board.
- Check connections and ensure no short circuits or incorrect placements.
- Test the circuit to verify proper operation.
- Do not exceed the resistor's power rating to avoid overheating.
- Handle with care to prevent damage to the resistor's leads.
- Ensure correct placement and orientation in the circuit.
