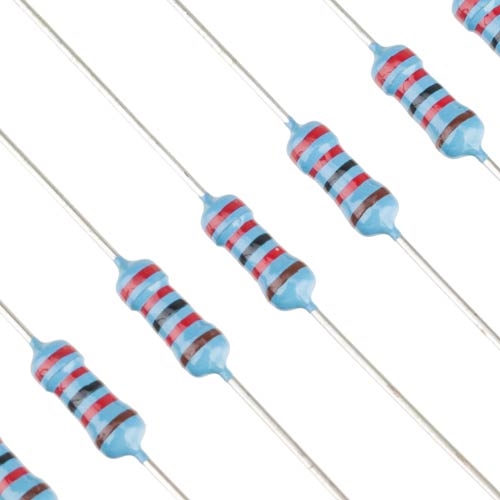

22KΩ 1/4W resistor
The 22KΩ 1/4W resistor is a fixed resistor used for limiting current, dividing voltages, and setting bias levels in electronic circuits. With a resistance value of 22,000 ohms and a power rating of 0.25 watts, it is suitable for a variety of low-power applications.
Key Features:
- Resistance value: 22KΩ (22,000 ohms)
- Power rating: 1/4 watt (0.25W)
- Tolerance: ±5% (standard) or ±1% (precision)
- Type: Fixed resistor
- Lead type: Axial leads for through-hole mounting
- Resistance: 22KΩ
- Power Rating: 0.25W
- Tolerance: ±5% (standard), ±1% (precision)
- Operating Temperature Range: -55°C to +155°C
- Temperature Coefficient: ±200 ppm/°C (typical)
- Package Type: Axial through-hole
- Voltage dividers
- Biasing of active devices
- Signal conditioning
- Pull-up/pull-down resistors
- Filtering applications
- Determine the required resistance value and power rating for your circuit.
- Solder the resistor into the circuit at the designated points.
- Ensure proper handling to avoid damaging the resistor.
- Verify connections and test the circuit.
- Avoid exceeding the resistor's power rating to prevent overheating and damage.
- Handle with care to avoid physical damage to the resistor's leads and body.
- Ensure correct orientation and placement to maintain circuit integrity.
