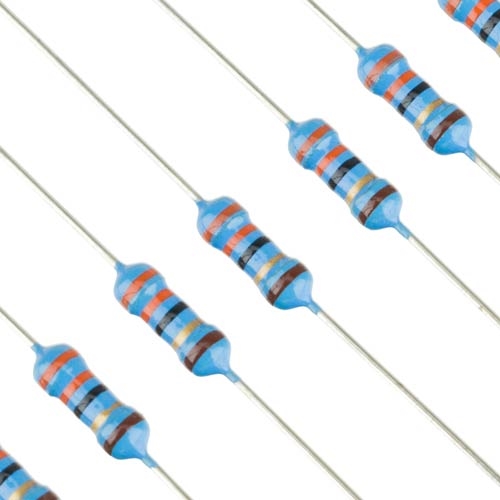

33Ω 1/4W resistor
A 33Ω (ohm) 1/4 watt resistor is a fixed-value resistor designed to offer a resistance of 33 ohms and can dissipate up to 0.25 watts (1/4W) of power. This resistor is commonly used in electronic circuits for various purposes such as current limiting, voltage dividing, and signal conditioning.
Key Features:
- Resistance: 33Ω
- Power Rating: 1/4W (0.25 watts)
- Tolerance: ±5% (commonly), with ±1% available for precision types
- Temperature Coefficient: Typically ±100ppm/°C or ±200ppm/°C for general-purpose resistors
- Resistance: 33Ω
- Power Rating: 1/4W (0.25 watts)
- Tolerance: ±5% (J), ±1% (F), depending on the specific resistor type
- Temperature Coefficient: ±100ppm/°C or ±200ppm/°C
- Operating Temperature Range: -55°C to +155°C
- Body Size: Typically through-hole with axial leads (1/4W size)
- Material: Carbon film, metal film, or metal oxide, depending on the type
- Current Limiting: Used to restrict the amount of current passing through a circuit or component.
- Voltage Division: Part of voltage divider circuits to achieve a desired voltage level.
- Biasing: Sets the operating points in transistor circuits or other electronic components.
- Load Resistor: Serves as a load in various electronic and electrical applications.
- Placement: Position the resistor on the PCB or in the circuit.
- Insertion: Insert the resistor leads into the appropriate holes or slots.
- Soldering: Solder the leads to the circuit board or connections and trim any excess leads.
- Verification: Use a multimeter to measure the resistance and confirm proper installation.
- Power Dissipation: Ensure the resistor does not exceed its 0.25-watt power rating to avoid overheating.
- Voltage Rating: Check that the resistor’s voltage rating is appropriate for your circuit.
- Handling: Handle carefully to avoid physical damage and ensure correct operation.
