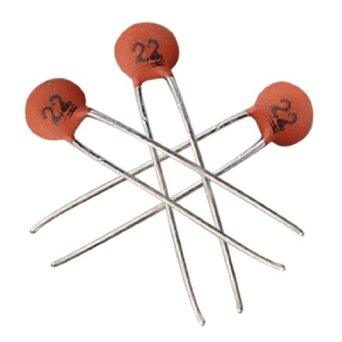

22pf capacitor
The 22pF monolithic capacitor is a fixed-value ceramic capacitor used in electronic circuits to provide a capacitance of 22 picofarads. Known for its stability and reliability, this capacitor is ideal for applications requiring precise capacitance, such as in RF circuits, filters, and oscillators.
Key Features:
- Fixed capacitance of 22pF
- Monolithic ceramic construction for durability
- Stable performance across temperature and voltage variations
- Suitable for high-frequency and analog circuit applications
- Compact size for efficient space usage
- Capacitance: 22pF
- Tolerance: ±5% or ±10%
- Voltage Rating: Typically 50V to 100VÂ
- Temperature Coefficient: Class 1
- Package Type: Through-hole
- RF and microwave circuits
- Oscillators and filters
- Precision timing and tuning
- High-frequency signal processing
- Place the capacitor in the designated position on the PCB.
- Solder the capacitor, ensuring proper connections and no solder bridges.
- Verify circuit functionality after installation.
- Ensure the capacitor's voltage rating meets your application requirements.
- Handle with care to avoid physical damage.
- Confirm correct orientation and placement if applicable.
