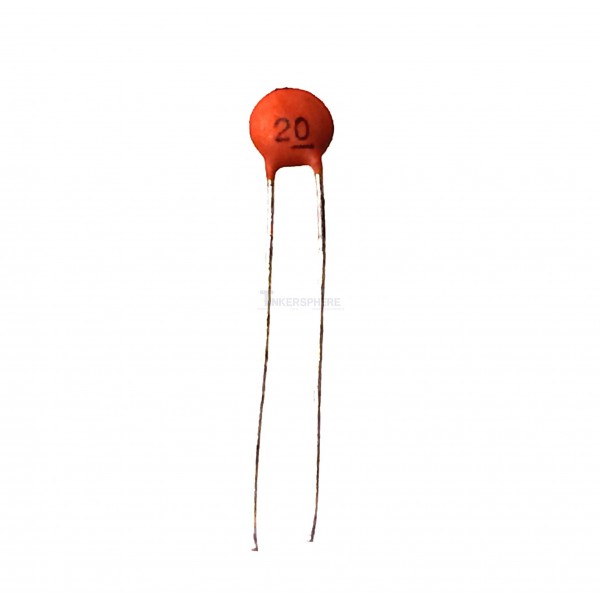

20pf capacitor
The 20pF monolithic capacitor is a fixed-value ceramic capacitor designed for precise applications requiring a capacitance of 20 picofarads. Its monolithic construction ensures stability and reliability, making it suitable for high-frequency and analog circuit applications.
Key Features:
- Fixed capacitance of 20pF
- Monolithic ceramic construction
- Stable performance over temperature and voltage
- Compact size for space-constrained applications
- Suitable for high-frequency and RF applications
- Capacitance: 20pF
- Tolerance: ±5% or ±10%
- Voltage Rating: Typically 50V to 100VÂ
- Temperature Coefficient: Class 1
- Package Type: Through-hole
- RF and microwave circuits
- Oscillators and filters
- Precision tuning and calibration
- High-frequency signal processing
- Insert the capacitor into the designated position on the PCB.
- Solder the capacitor, ensuring proper connections and no short circuits.
- Verify the circuit’s operation after installation.
- Ensure the voltage rating is appropriate for your application.
- Handle with care to avoid damage.
- Check for correct polarity if applicable.
