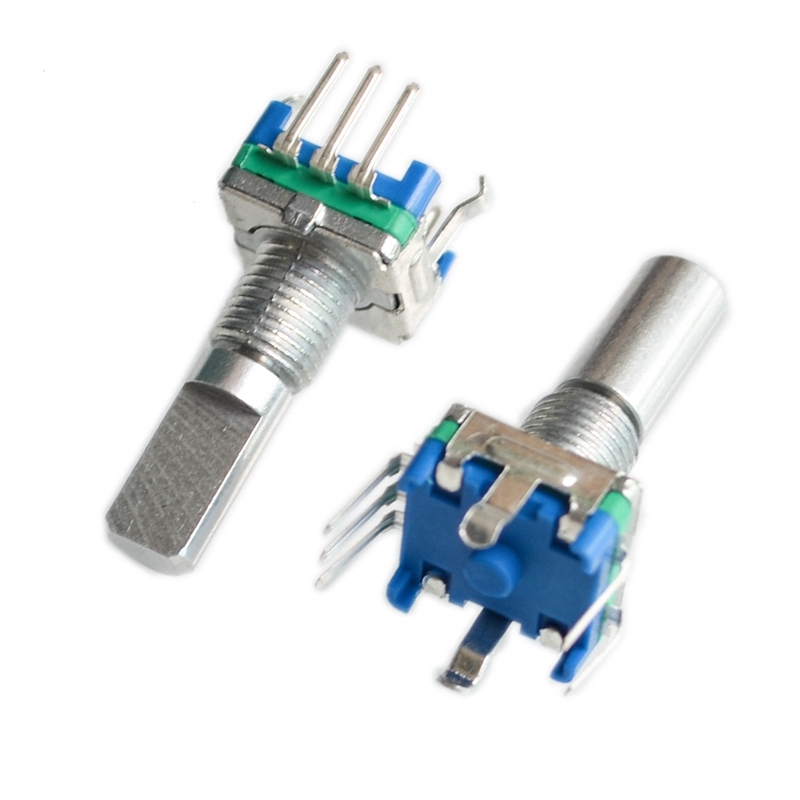

EC11 Rotary Encoder/ Audio Digital Potentiometer
The EC11 is a versatile rotary encoder commonly used in various electronic devices for precise rotational input and control. It combines the functionality of a rotary encoder and, in some configurations, an audio digital potentiometer.
Key Features:
- Encoder Type: Rotary encoder.
- Functionality: Provides rotational input and control.
- Resolution: Typically offers high resolution for accurate position detection.
- Output: Digital signals (typically quadrature output) for rotational direction and speed.
- Built-in Switch: Often includes a built-in push-button switch activated by pressing the shaft.
- Optional Audio Digital Potentiometer: Some variants integrate a digital potentiometer feature for audio volume control.
- Integration: Compact and designed for easy integration into various electronic circuits.
- Operating Voltage: Typically operates at 5V DC.
- Dimensions: Compact size suitable for integration into control panels, audio equipment, and electronic projects.
- Mounting: Typically includes mounting holes or shaft for easy installation.
- Durability: Designed for long-term reliability and durability.
- Communication: Interfaces may include SPI, I2C, or simple digital signals depending on the model.
- Audio equipment (with digital potentiometer feature)
- Rotary input devices (e.g., volume controls)
- Electronic instruments
- Industrial control systems
