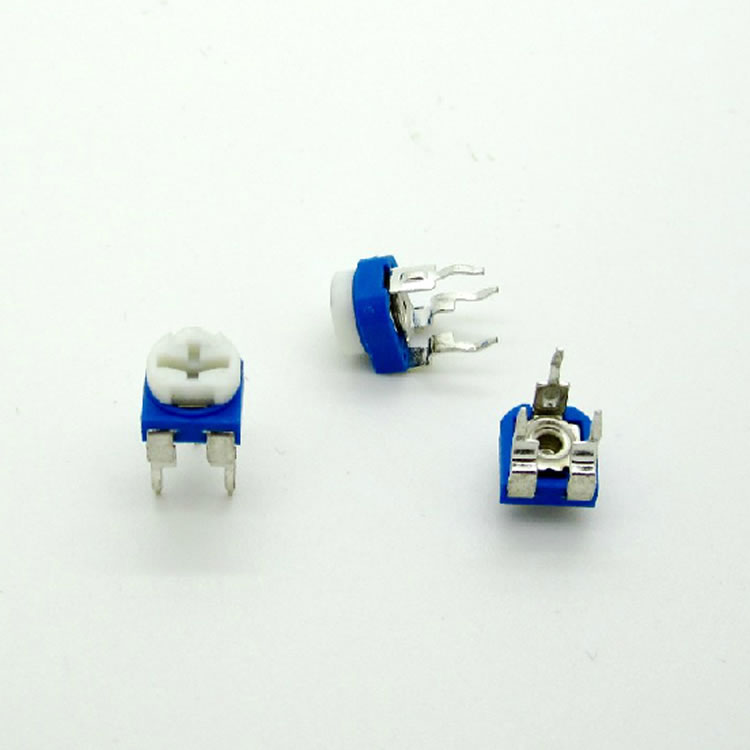

204 200K ohm Variable Resistor
The 200KΩ Variable Resistor, also known as a potentiometer, is used for adjusting resistance in electronic circuits. With a resistance range of 200,000 ohms, it provides the flexibility needed for fine-tuning various electronic parameters. This component is ideal for applications requiring precise control of resistance, such as in audio volume controls, calibration circuits, and other adjustable electronic settings.
Key Features:
- Resistance Range: 200KΩ (200,000Ω)
- Allows for fine-tuning and precise resistance adjustments
- Available in different adjustment types (rotary or linear)
- Comes in various mounting styles (through-hole or surface-mount)
- Resistance Value: 200KΩ (200,000Ω)
- Tolerance: ±10%
- Power Rating: Typically 0.5W to 1W
- Adjustment Type: Rotary or linear
- Package Type: Through-hole
- Signal level adjustment
- Voltage divider circuits
- Audio volume controls
- Calibration of electronic circuits
- Connect the potentiometer to the circuit where resistance adjustment is required.
- Adjust the control knob or slider to set the desired resistance value.
- Ensure the circuit operates within the specified resistance range for proper performance.
- Ensure the power rating of the potentiometer is not exceeded to avoid damage.
- Handle the component carefully to avoid mechanical damage.
- Verify resistance values periodically to maintain circuit accuracy.
