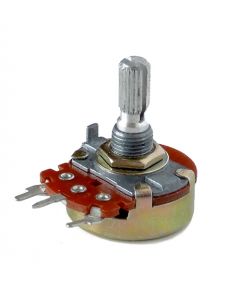

100KΩ Potentiometer
The 100KΩ Potentiometer is an adjustable resistor with a nominal resistance of 100,000 ohms. It is used to fine-tune electrical circuits by varying the resistance within a circuit, making it ideal for applications such as volume control, calibration adjustments, and signal tuning.
Key Features:
- Adjustable resistance range: 0Ω to 100KΩ
- High accuracy and stability
- Available in various types such as rotary or slide
- Compact design for versatile use in electronic devices
- Easy integration into both through-hole and surface-mount designs
- Resistance Value: 100KΩ
- Tolerance: ±10%
- Power Rating: Typically 0.5W to 1W
- Adjustment Type: Rotary or Slide
- Temperature Range: -55°C to +125°C
- Package Type: Through-hole or Surface-mount
- Audio volume controls
- Signal tuning and calibration
- Adjustments in electronic devices and circuits
- Brightness and contrast settings
- Integrate the potentiometer into your circuit based on the schematic diagram.
- Adjust the control to set the desired resistance value.
- Verify that the potentiometer is securely connected and functioning correctly.
- Use the potentiometer for precise adjustments and tuning as needed.
- Avoid mechanical stress during adjustment to prevent damage to the potentiometer.
- Ensure the power rating of the potentiometer matches your circuit requirements to avoid overheating.
- Handle with care to avoid damage to the internal components.
