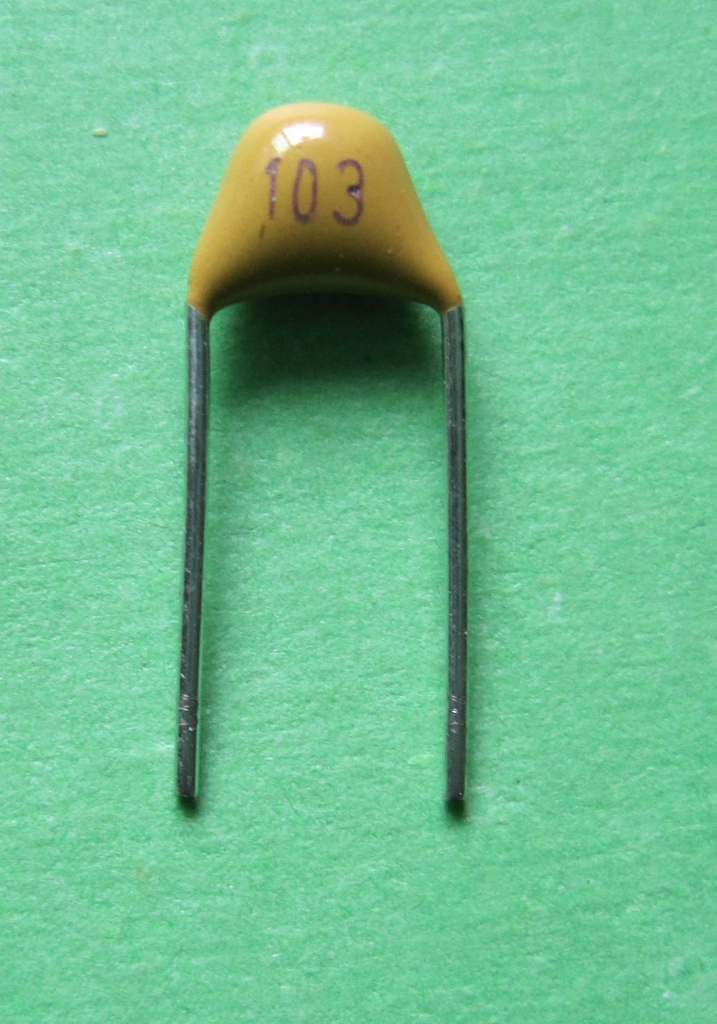

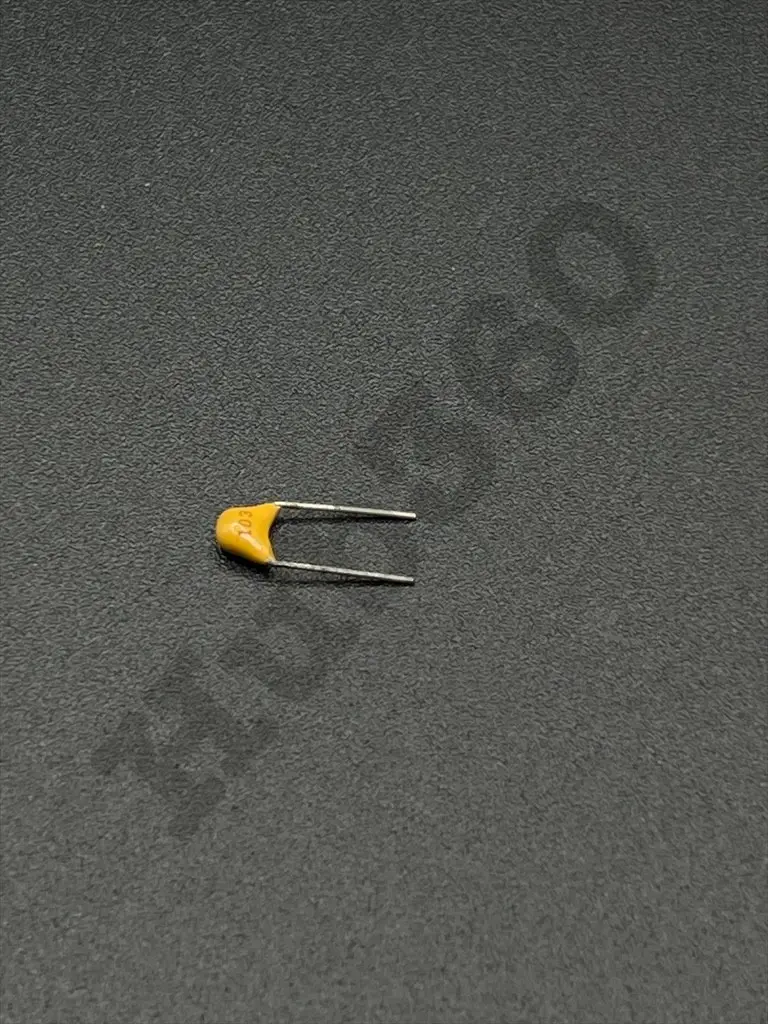

103 0.01uf 10nf 10000pf Monolithic Capacitor
This content will be shared across all product pages.
The 103 0.01uF 10nF 10000pF Monolithic Capacitor is a small, stable capacitor used in various electronic circuits for filtering, decoupling, and coupling applications. Its compact size and reliable performance make it ideal for use in space-constrained designs.
Key Features:
- Capacitance: 10000pF (10nF, 0.01uF)
- High stability and reliability
- Low equivalent series resistance (ESR)
- Available in SMD or through-hole packages
- Wide operating temperature range
- Capacitance: 10000pF (10nF, 0.01uF)
- Voltage Rating: 25V to 100V
- Tolerance: ±5%, ±10%
- Temperature Coefficient: ±20ppm/°C to ±50ppm/°C
- Operating Temperature Range: -55°C to +125°C
- Package Type: SMD or through-hole
- Power supply filtering
- Signal coupling and decoupling
- Audio and RF circuits
- Timing and delay circuits
- General-purpose electronic applications
- Select the capacitor based on your circuit's capacitance and voltage requirements.
- Install the capacitor on the PCB, ensuring correct orientation if polarity-sensitive.
- Solder the capacitor securely to avoid poor connections.
- Test the circuit to confirm proper operation.
- Ensure the capacitor's voltage rating is appropriate for your circuit.
- Avoid mechanical stress and excessive heat during soldering.
- Store in a dry, controlled environment to maintain capacitor performance.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
