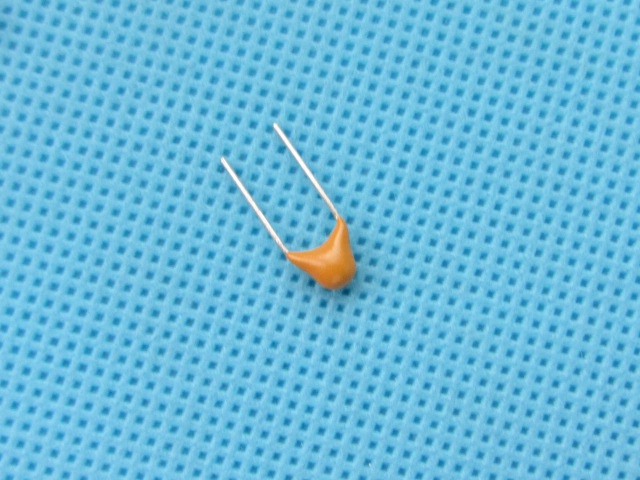

47pf Monolithic Capacitor
The 47pF Monolithic Capacitor is a compact, high-reliability ceramic capacitor designed for a wide range of electronic applications. Its monolithic construction provides excellent performance in high-frequency circuits, making it ideal for RF, oscillators, and filtering applications. This capacitor offers stability and low loss, ensuring effective operation in both analog and digital circuits.
Key Features:
- Capacitance: 47pF
- Monolithic ceramic construction
- High stability and reliability
- Low ESR (Equivalent Series Resistance)
- Compact size
- Suitable for high-frequency applications
- Wide operating temperature range
- Capacitance: 47pF
- Tolerance: ±5%
- Rated Voltage: 50V
- Temperature Coefficient: NP0 (C0G)
- Operating Temperature Range: -55°C to +125°C
- Package Type: Through-hole or SMD (Surface Mount Device)
- Dimensions: Standard monolithic capacitor size
- RF circuits and oscillators
- High-frequency filters
- Signal coupling and decoupling
- Timing circuits
- General-purpose use in electronic devices and projects
- Identify the correct position for the capacitor in your circuit.
- Insert the capacitor leads into the designated holes on a PCB or solder it onto the pads for SMD versions.
- Ensure proper polarity if applicable (monolithic capacitors are typically non-polarized).
- Solder the leads or pads securely.
- Verify the connections and ensure the capacitor is properly integrated into the circuit.
- Handle the capacitor with care to avoid damage to the ceramic material.
- Ensure the rated voltage is not exceeded to prevent capacitor failure.
- Store in a dry and static-free environment.
