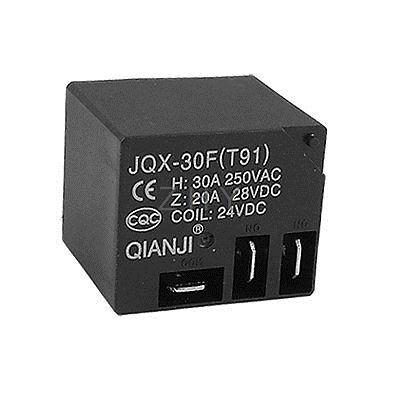

JQX-30F(T91) 24VDC 30A relay
The JQX-30F(T91) is a high-performance electromagnetic relay designed for switching high-current loads in various applications. With a 24V DC control voltage and a maximum current rating of 30A, this relay is ideal for use in automotive systems, industrial controls, and other high-power switching tasks. Its robust design ensures reliable operation and durability.
Key Features:
- Operates on 24V DC control voltage
- Rated for 30A maximum switching current
- SPDT (Single Pole Double Throw) configuration
- High insulation resistance and dielectric strength
- Suitable for use in automotive and industrial applications
- Designed for high durability and long service life
- Control Voltage: 24V DC
- Maximum Load Current: 30A
- Contact Configuration: SPDT (Single Pole Double Throw)
- Contact Rating: 30A @ 250V AC, 30A @ 30V DC
- Coil Resistance: Approximately 1.5Ω
- Insulation Resistance: ≥ 100MΩ at 500V DC
- Dielectric Strength: 4000V AC for 1 minute
- Operating Temperature Range: -40°C to +85°C
- Package Type: Standard relay enclosure
- Automotive systems
- Industrial machinery
- Home automation
- Power management systems
- HVAC controls
- High-current switching
- Connect the relay coil terminals to the 24V DC control circuit.
- Connect the load terminals to the high-current circuit that needs switching.
- Ensure proper wiring and connections to handle the relay’s rated current and voltage.
- Activate the relay by applying 24V DC to the coil to switch the load.
- Avoid exceeding the relay’s maximum current and voltage ratings.
- Ensure proper insulation and connections to prevent electrical hazards.
- Regularly check for signs of wear or damage to maintain reliable operation.
